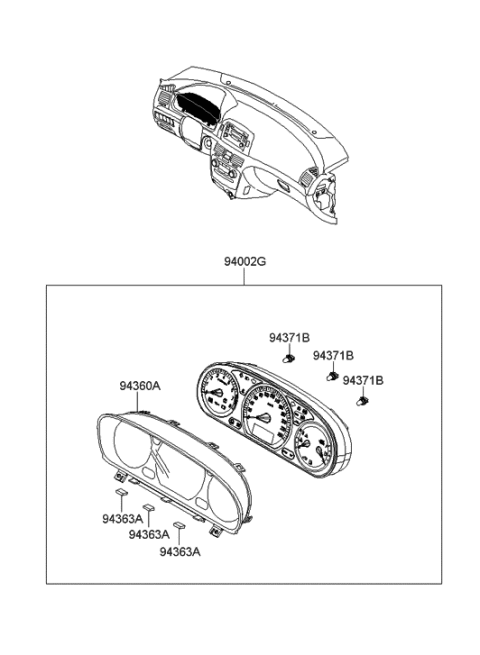

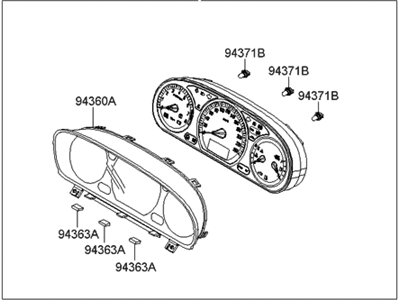

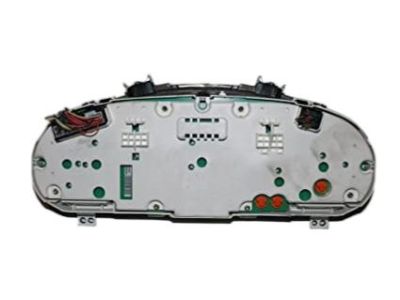

Hyundai 94011-0A030 Cluster Assembly-Instrument(Mph)

This procedure is especially difficult for the home mechanics because of concealed fasteners, hard-to-reach areas, and electrical connectors which have to be marked and disconnected. Thus, it should be attempted only by experienced homeowners those who perform a number of DIY tasks. During the removal of the instrument panel, one should take keen note on the manner in which each component is removed, position of that particular component in relation to the other components, and the method used in attaching that particular component to the car. However, it is not mandatory to remove both front seats; still, it will create more working space and there are fewer chances to bent the seats during the process. Start with the negative terminal of the battery and, if needed, take out the front seats, then the steering wheel and multi-function switch. Next, the dashboard trim panels and center floor console are to be unlocked and then removed, and the audio unit as well as air conditioning control panel are to be also removed. Next, remove the instrument cluster and glove box, then detach the passenger side airbag electrical connector, and finally remove the driver's knee bolster reinforcement structure. Lose the bolts connecting the steering column to the 'instrument panel and lower it, finally, detach the front pillar trim, kick panel, as well as the passengers side trim panel. Some of the connectors to be disconnected include ; Loosen and disconnect some screws to the extent that they can be removed so as to allow the separation of the instrument panel and tag any of the connectors that may need reconnection with tape if needed. Unfasten all the clips clamping the instrument panel to the body and gradually raise the panel from the windshield and pull it towards the door, if possible, in tandem with someone. The elimination of the support beam is another complicated one that includes many electrical connections and screws and it has to be done only in the case when it is necessary to gain an access to the heating/air conditioning unit. In installation, the class is removed as is done in removal but in a reverse manner.

Disconnect the cable from the negative battery terminal. Remove the instrument cluster bezel for models from 1999 to 2005 or the lower cluster trim panel for 2006 and later models. Remove the cluster mounting screws to detach the instrument cluster, then pull the cluster towards the steering wheel while disconnecting the wiring. Disconnect the electrical connectors from the rear of the cluster. Installation is the reverse of removal.
