Genuine Hyundai Accent CV Joint Boot

Hyundai Accent CV Joint Boot Parts Questions & Answers

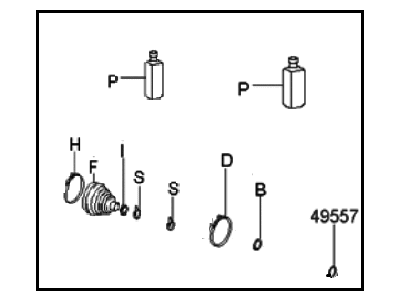

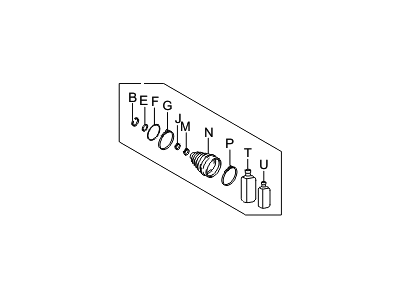

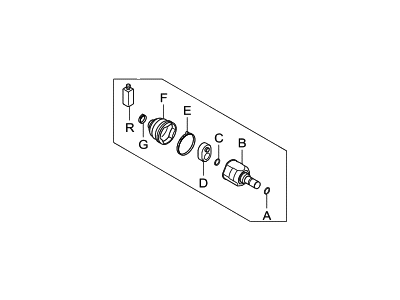

• Joint Kit-Front Axle Differential Side
  49505-1E000
  Q: How to disassemble the inner and outer CV joints and boots?

  A: To disassemble the inner CV joint and CV Joint Boot, remove the CV joint and mount it in a vise. Pry the boot clamp tabs up and slide the clamps off. Depending on the model, slide the boot back and pry the wire ring ball retainer from the outer race. Remove the outer race and snap-ring from the axleshaft. Mark the inner race and cage for reassembly. Remove the inner bearing assembly and balls from the cage. Remove the inner race from the cage. Clean the components with solvent and check for wear and damage. To reassemble, insert the inner race into the cage and press the balls into the cage windows. Slide the boot and small boot clamp onto the axleshaft. Install the inner bearing assembly and secure the snap-ring. Fill the outer race and boot with grease. Install the boot clamps and a new circlip on the inner CV joint stub axle. Reinstall the CV joint. For the outer CV joint, follow the same steps. If servicing the left CV joint outer CV joint, mark the position of the dynamic damper and remove it. Clean and inspect the inner and outer CV joints. Reassemble by sliding the new outer boot onto the CV joint, adding grease, and installing the new clamps. If necessary, reinstall the dynamic damper and clean and reassemble the inner CV joint. Finally, install the CV joint.
