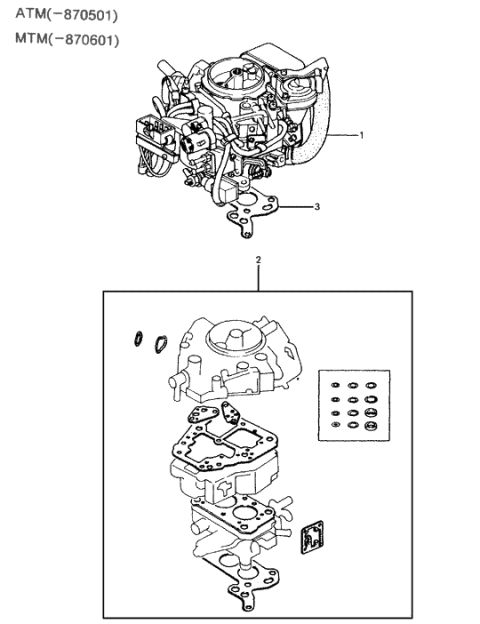

Hyundai 32110-21350 Carburetor Assembly

Remove the fuel filler cap to relieve fuel tank pressure. Remove the air cleaner assembly. Disconnect the throttle cable from the throttle lever. If the vehicle is equipped with an automatic transmission, disconnect the TV cable from the throttle lever. Clearly label all vacuum hoses and fittings, then disconnect the hoses. Disconnect the fuel line from the carburetor. Label the wires and terminals, then unplug all wire harness connectors. Remove the mounting bolts and detach the carburetor from the intake manifold. The bolts extend all the way through the carburetor. Remove the carburetor mounting gasket. Stuff a shop rag into the intake manifold opening.Installation: Use a gasket scraper to remove all traces of gasket material and sealant from the intake manifold (and the carburetor if it's being reinstalled), then remove the shop rag from the manifold openings. Clean the mating surfaces with lacquer thinner or acetone. Place a new gasket on the intake manifold. Position the carburetor on the gasket and install the mounting fasteners. To prevent carburetor distortion or damage, tighten the fasteners in a criss-cross pattern, 1/4-tum at a time, to the torque. The remaining installation steps are the reverse of removal. Check and, if necessary, adjust the idle speed. Start the engine and check carefully for fuel leaks.

Some signs of carburetor problems include flooding, hard starting, stalling, severe backfiring, and poor acceleration.

Hook up a tachometer, start the engine, turn on the air conditioner, and adjust the idle speed with the throttle adjusting screw if it is out of specification.
