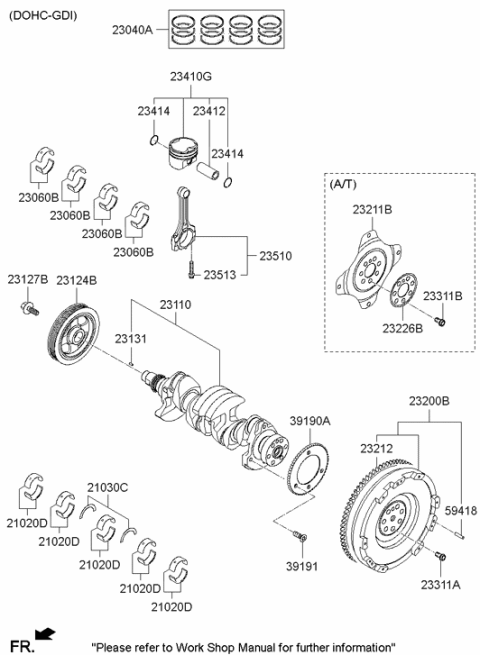

Hyundai RC625-2EW00 Crankshaft Assembly

Insert the rubber gasket into the grooves on the top side of the lower crankcase, apply a continuous bead of Three-bond #1217 liquid sealer to the sealing surface, and install the lower crankcase onto the cylinder block.

Inspect the crankshaft sensor wheel at the rear of the crankshaft for cracks, wear, and any other damage. If the sensor wheel is damaged, replace it, as damage to this component can result in severe driveability problems. To remove the sensor wheel from the crankshaft, remove the three retaining screws, and ensure to tighten the retaining screws when installing the sensor wheel.

Remove the ladder frame mounting bolts and then separate the ladder frame from the cylinder block. It may be necessary to drive a gasket scraper between the ladder frame and the cylinder block using a hammer, but caution is advised to avoid scratching or cutting the surface.
