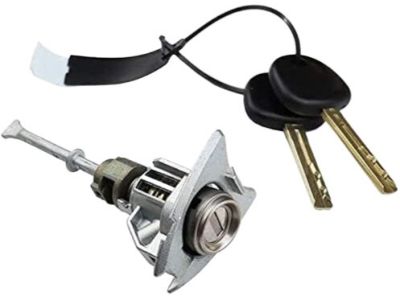

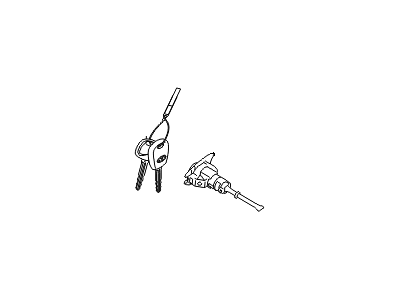

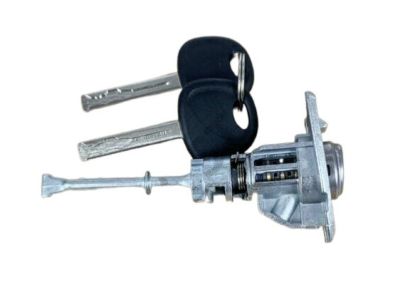

Hyundai 81970-3SA00 Door Key Sub Set,Left

Wear gloves when working inside the door openings to protect against cuts from sharp metal edges. For 2005 and earlier models, begin by removing the door trim panel and water shield. Through the large access hole, disengage the rods from the handle and lock cylinder, which are attached by plastic clips that can be unsnapped and pulled out. Disconnect the electrical connectors at the latch and disengage the handle-to-latch cables. Remove the screws securing the latch to the door and take out the latch assembly. Installation follows the reverse order. For 2006 and later models, first remove the window glass, then disconnect the door wiring harness at the door hinge jamb and pull it into the door. Remove the fasteners securing the inner panel, lifting it out while threading the door latch cables through. Disconnect the wiring harness and speaker connection, then remove the door operator module, outside handle, and its pad. Take out the outside handle base from inside the door, remove the latch bolts, and lift out the latch. Installation is the reverse of removal. When dealing with the outside handle and door lock cylinder/door operator module, take care not to scratch the paint on the outside of the door; applying wide masking tape around the handle opening can help. For 2005 and earlier models, disengage the plastic clips securing the outside door lock-to-latch rod and the outside door handle-to-latch rod through the access hole. Remove the handle and lock cylinder retaining screws from inside the door, then take out the handle and lock cylinder. Installation is the reverse of removal. For 2006 and later models, remove the window glass and the inner panel. Through the access hole, remove the fastener at the rear of the handle and take out the handle. The door operator module can then be removed, with installation following the reverse order.

you have to have a lock smith rekey it to match
