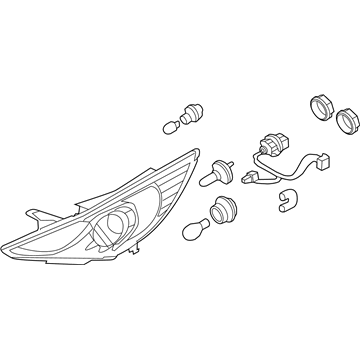

Hyundai 92102-3Q000 Passenger Side Headlight Assembly Composite

The headlights must be warranted in the correct angle to be prevented from giving off the rightful glare to the oncoming vehicles and to also obtain the foremost visibility on roads. Basically the aim should be checked at least once a year and any time a new headlight is fitted or a front-end body work is carried out. The following procedure will afford a relief until a suitable shop can be reached for proper adjustment. For light adjusting one needs masking tape, a blank wall, and a level surface for placing a test vehicle. Place vertical tape having a distance equal to the length of the car from the ground and tapes the top of the tape onto the wall with the vertical line passing through the middle of both headlights as well as the middle of the car. The car should be parked 25 feet from the wall, stable, half tank of gasoline, and should not be loaded. Low beams are dimmed while positioning the high intensity zone one inch below the horizontal line in relation to the adjusting screw. For High beams, the HIZ should be located vertically in the middle of the car slightly below the horizontal line while remembering that low beams are safer. Each assembly can move horizontally and vertically; the later versions have labelled screws. Using a long Phillips screwdriver adjust the interlocking wheel and twist it clockwise or counter clockwise until it is set at the right degree. Corrective adjustments on the headlights are best done by a professional as soon as possible.

Disconnect the wiring from the headlight assembly.
