What is the purpose and components of the evaporative emission control system,Canister Purge Valve and Vapor Canister on Hyundai Accent?

The purpose for the evaporative emission control system is to keep fuel vapors from escaping into the atmosphere. It includes a canister, water vent valve, purge control valve, thermo valve, overfill limiter and specialty designed fuel cap. When the engine is off, the canister will absorb and store the vapors of the fuel system whereas when it's started; these vapors go through various valves and lines into intake manifold. Bowl vent valve controls carburetor float bowl vapors. The carbureted engine purge control valve is closed during idle to prevent vaporized fuel from entering the intake manifold. At higher engine speeds, the purge control valve opens. Thermo valve senses temperature at the intake manifold and closes purge control valve when coolant temperature falls below preset value. Fuel filler cap is fitted with vacuum relief valves to prevent escape of fuel vapor into atmosphere. There are two types: pressure valve which opens if internal pressure of a tank exceeds normal pressure condition while vacuum valve operates when internal tank pressure is lower than normal pressure condition.The fuel check-valve connected in fuel vapor line between canister and overfill limiter prevents leakage of fuel during vehicle rollover.It has two balls inside.Under normal conditions, it allows passage of fuel vapour through its body.However,in case of an accident,the balls will situate themselves in such a way that one blocks up this passage consequently preventing any possible leaking of petrol.

Genuine Hyundai Accent Canister Purge Valve

Vapor Canister Purge Valve EVAP

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Canister Purge Valves found

View related parts

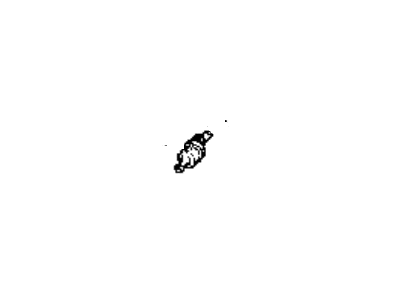

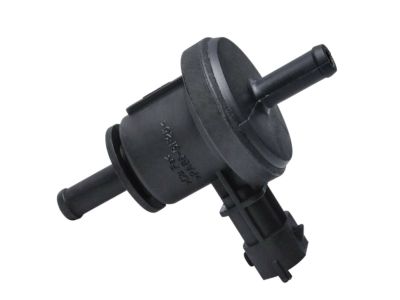

Hyundai Accent Canister Purge Valve
Part Number: 28910-3C200
$59.08 MSRP: $83.00
You Save: $23.92 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Purge Control Valve, Purge Solenoid, PCV Valve, Valve Purge Control, Evap Canister, Vapor Canister Purge; Vapor Canister Purge Valve
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2011-2017 Hyundai Accent | DOHC - GDI | Sedan - 4Door 5P, Sedan - 5Door 5P
View related parts
Hyundai Accent Purge Control Valve
Part Number: 28910-22040
$60.80 MSRP: $85.42
You Save: $24.62 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve-PURGE Control; Purge Solenoid, Purge Valve
- Replaces: 28910-22030
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1994-2006 Hyundai Accent | High Grade, Low Grade, Middle Grade | 3 Door, 3 Door Sedan, 4 Door, 4 Door Sedan
View related parts
Hyundai Accent Purge Control Valve
Part Number: 28910-3L000
$31.76 MSRP: $44.24
You Save: $12.48 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve-PURGE Control; Purge Solenoid, Purge Valve
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2018-2022 Hyundai Accent | DOHC - GDI | Sedan - 4Door 5P
View related parts
Hyundai Accent Purge Control Valve
Part Number: 28910-26900
$60.80 MSRP: $85.42
You Save: $24.62 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve-PURGE Control; Purge Valve
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2005-2011 Hyundai Accent | High Grade, Middle Grade | DOHC - MPI | 3 Door Sedan, 4 Door Sedan, Sedan - 3Door 5P, Sedan - 4Door 5P
View related parts
Hyundai Accent Canister Close Valve
Part Number: 31430-29200
$120.59 MSRP: $169.42
You Save: $48.83 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve-Canister Close
- Manufacturer Note: KOREA
- Replaces: 31430-29100
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2005-2011 Hyundai Accent | High Grade, Middle Grade | DOHC - MPI | 3 Door Sedan, 4 Door Sedan, Sedan - 3Door 5P, Sedan - 4Door 5P
- 1994-1999 Hyundai Accent | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door
View related parts
Hyundai Accent Canister Close Valve
Part Number: 31453-3K500
$69.56 MSRP: $97.73
You Save: $28.17 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Filter & Canister Valve Assembly; Air Filter, Filter, Shut-Off Valve
- Replaces: 31453-3K700
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2011-2017 Hyundai Accent | DOHC - GDI | Sedan - 4Door 5P, Sedan - 5Door 5P
View related parts
Hyundai Accent Canister Close Valve
Part Number: 31453-3K600
$16.34 MSRP: $21.11
You Save: $4.77 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve-Canister Close
- Replaced by: 31453-3K600-FFF
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2011-2017 Hyundai Accent | DOHC - GDI | Sedan - 4Door 5P, Sedan - 5Door 5P
View related parts
Hyundai Accent Purge Control Valve
Part Number: 28910-2M322
$25.48 MSRP: $35.48
You Save: $10.00 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve-PURGE Control; Purge Valve
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2018-2022 Hyundai Accent | DOHC - MPI | Sedan - 4Door 5P
View related parts
Hyundai Accent Purge Control Valve
Part Number: 28910-22030
$60.80 MSRP: $85.42
You Save: $24.62 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve-PURGE Control
- Replaced by: 28910-22040
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1994-1999 Hyundai Accent | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door
View related parts
Hyundai Accent Canister Close Valve
Part Number: 31430-29100
$120.59 MSRP: $169.42
You Save: $48.83 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve-Canister Close
- Manufacturer Note: PIERBURG
- Replaced by: 31430-29200
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1994-1999 Hyundai Accent | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door
View related parts
Hyundai Accent Purge Control Valve Assembly
Part Number: 29000-2M329
$40.07 MSRP: $55.81
You Save: $15.74 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assy-Purge Control; Purge Control Valve
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2018-2022 Hyundai Accent | DOHC - MPI | Sedan - 4Door 5P

Hyundai Accent Canister Purge Valve

The Hyundai Accent Canister Purge Valve directs trapped fuel vapor into the engine so it can be burned in the engine rather than vented into the atmosphere. Sitting between the charcoal canister and intake manifold, the Canister Purge Valve opens when engine vacuum is present and allows fresh air to sweep hydrocarbons from the canister into the combustion chambers, which reduces smog-forming emissions and fuel odors. Throughout Hyundai development, refinements have been made to the valve response time for better efficiency and cleaner running. Early versions on the Accent line were simple vacuum-controlled units that opened automatically once vacuum rose above a threshold. Later Canister Purge Valve designs upgraded to an electrically driven solenoid so the Engine Control Module could schedule vapor flow, perform leak self-tests, and turn on the warning lamp if targets were missed. The transition to the OBD II style Canister Purge Valve also introduced a vent solenoid and tank pressure sensor to allow the system to be sealed and checked for integrity during diagnostic sequences. If the Canister Purge Valve gets stuck, the Engine Control Module (ECM) records a fault and may turn on the check engine light, but all designs have the same mission to help every Hyundai Accent meet tough air quality rules while still keeping driving smooth.

If you are looking for affordable high-quality OEM Hyundai Accent Canister Purge Valve, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Accent Canister Purge Valve at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Accent Canister Purge Valve Parts Questions & Experts Answers

Purge Control Valve
28910-22040
Q: What is the purpose and components of the evaporative emission control system,Canister Purge Valve and Vapor Canister on Hyundai Accent?
A:
The purpose for the evaporative emission control system is to keep fuel vapors from escaping into the atmosphere. It includes a canister, water vent valve, purge control valve, thermo valve, overfill limiter and specialty designed fuel cap. When the engine is off, the canister will absorb and store the vapors of the fuel system whereas when it's started; these vapors go through various valves and lines into intake manifold. Bowl vent valve controls carburetor float bowl vapors. The carbureted engine purge control valve is closed during idle to prevent vaporized fuel from entering the intake manifold. At higher engine speeds, the purge control valve opens. Thermo valve senses temperature at the intake manifold and closes purge control valve when coolant temperature falls below preset value. Fuel filler cap is fitted with vacuum relief valves to prevent escape of fuel vapor into atmosphere. There are two types: pressure valve which opens if internal pressure of a tank exceeds normal pressure condition while vacuum valve operates when internal tank pressure is lower than normal pressure condition.The fuel check-valve connected in fuel vapor line between canister and overfill limiter prevents leakage of fuel during vehicle rollover.It has two balls inside.Under normal conditions, it allows passage of fuel vapour through its body.However,in case of an accident,the balls will situate themselves in such a way that one blocks up this passage consequently preventing any possible leaking of petrol.
