Genuine Hyundai Accent Release Bearing

Hyundai Accent Release Bearing Parts Questions & Answers

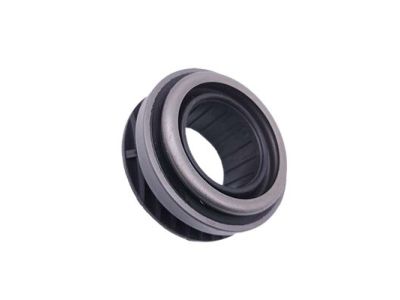

• Bearing-Clutch Release
  41421-23020
  Q: How do you remove the Clutch Fork and Release Bearing?

  A: To remove the transaxle, start by pulling the ends of the bearing retaining clip out of the release fork using pliers. Then, carefully remove the bearing from the clutch housing, being mindful of the retaining spring. If the bearing is not turning smoothly or is noisy, it should be replaced. If reusing the old bearing, wipe it clean with a rag, but avoid immersing it in solvent. Check the release fork ends for excessive wear and replace if necessary. For 1999 and earlier models, drive out the spring pins with a pin punch and hammer, then remove the fork, spring, and spacers. For installation, lubricate the release shaft bore in the clutch housing with high temperature grease and slide the shaft partially into the housing. Place the spacers, spring, and fork in position, then slide the shaft through and align the spring pin holes. Insert new spring pins. On 2000 and later models, lubricate the fork ball stud and fork. Lubricate the release fork ends and pack the inner groove of the release bearing with high-temperature grease. Position the bearing against the release fork and install the retaining clip securely. Finally, reinstall the transaxle.
• Bearing-Clutch Release
  41421-23010
  Q: How to remove and install Clutch Disc,Clutch Fork and Release Bearing?

  A: To gain access to the clutch, remove the transaxle and support the engine, protecting the oil pan. The clutch fork and release bearing are allowed to stay linked to the housing. Use an alignment tool to hold the clutch disc during removal. Check the clutch disc, flywheel, pressure plate, and release bearing for wear and damage. Replace the release bearing with the clutch disc. Position the clutch disc and pressure plate against the flywheel using an alignment tool.
