How to test and replace the cooling fan assembly on Hyundai Excel?

The cooling fan assembly in 1986-1994 models is controlled by a temperature switch in the radiator. When the coolant reaches a certain temperature, the switch activates the fan. In 1986-1989 models, the switch completes the ground circuit for the fan motor, while in 1990-1994 models, it powers the cooling fan relay control circuit. From 1995 onwards, the ECM controls the cooling fan relay, using data from the Engine Coolant Temperature sensor. To test the fan motor, connect it directly to the battery. If it doesn't work, replace the motor. If the motor is fine but doesn't work normally, the issue could be the coolant temperature switch, cooling fan relay, ECM or wiring harness. Test the temperature switch by bridging the terminals of the switch harness connector. If the fan works, the switch is likely defective. To replace, remove the radiator and fan, detach the fan blade assembly from the motor shaft, and remove the fan motor from the shroud. Reinstall in reverse order.

Genuine Hyundai Excel Cooling Fan Assembly

Engine Cooling Fan

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Cooling Fan Assemblys found

View related parts

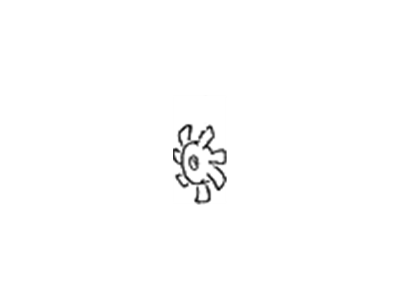

Hyundai Excel Cooling Fan
Part Number: 97737-37100
$21.05 MSRP: $27.21
You Save: $6.16 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan-Cooling; Blade, Fan Blade
- Replaces: 97737-37000
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Blower Assembly-Conderser
Part Number: 97730-24003
$319.78 MSRP: $449.27
You Save: $129.49 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Cooling Fan
Part Number: 97737-24000
$57.85 MSRP: $81.27
You Save: $23.42 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan-Cooling; Blade, Fan Blade
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Fan & Motor Assembly-A/C CONDENSER
Part Number: 25380-21810
$297.84 MSRP: $418.45
You Save: $120.61 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan & Motor Assembly-Air Conditioner Condenser
- Replaced by: 25380-21250
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Blower Assembly-Conderser
Part Number: 97730-24001
$332.69 MSRP: $467.42
You Save: $134.73 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 97730-24701
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Blower Assembly-Conderser
Part Number: 97730-24002
$332.69 MSRP: $467.42
You Save: $134.73 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 97730-24701
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Cooling Fan
Part Number: 25231-21000
$18.47 MSRP: $23.87
You Save: $5.40 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan-Cooling; Blade, Fan Blade
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Cooling Fan
Part Number: 25231-21250
$27.04 MSRP: $37.66
You Save: $10.62 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan-Cooling
- Replaces: 25231-21500
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Cooling Fan
Part Number: 25231-21500
$27.04 MSRP: $37.66
You Save: $10.62 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan-Cooling
- Replaced by: 25231-21250
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Cooling Fan
Part Number: 25231-24000
$29.48 MSRP: $41.06
You Save: $11.58 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan-Cooling; Blade, Fan, Fan Blade
- Replaces: 97737-28000
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Cooling Fan
Part Number: 25231-32000
$53.84 MSRP: $74.98
You Save: $21.14 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan-Cooling; Blade, Fan Blade
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel

Hyundai Excel Cooling Fan Assembly

The Hyundai Excel Cooling Fan Assembly regulates engine temperature by drawing cool air through the radiator when the vehicle is at low speeds or idling, where natural airflow is reduced. Positioned just behind the grille and working with the radiator fins to carry away heat from the coolant as it flows through the system, the Cooling Fan Assembly prevents overheating that can harm other critical components. Earlier iterations of this technology applied a fan driven mechanically via engine rotation, whereas the later versions began using an electric Cooling Fan Assembly that runs from its own dedicated motor, allowing it to work when the car is stationary with the engine idling. The electric style allows for more efficient cooling, as it only starts up after a temperature sensor gives the signal when more airflow is required. The mechanical design, however, spins any time the motor does, thus using up extra power and making extra noise. The two styles both have a shroud that directs airflow to the core and robust blades that fit in the small Excel engine bay. Do you love your Hyundai Excel? The Cooling Fan Assembly fitted to every example, regardless of year, has been reliable and long-lasting. As such, if your unit has become tired and sluggish, you can replace it with the correct Cooling Fan Assembly specified for your model to restore factory cooling capacity. More importantly, doing this ensures the kind of reliable performance that you expect from Hyundai and your sprightly Excel.

If you are looking for affordable high-quality OEM Hyundai Excel Cooling Fan Assembly, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Excel Cooling Fan Assembly at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Excel Cooling Fan Assembly Parts Questions & Experts Answers

Cooling Fan
25231-24000
Q: How to test and replace the cooling fan assembly on Hyundai Excel?
A:
The cooling fan assembly in 1986-1994 models is controlled by a temperature switch in the Radiator. When the coolant reaches a certain temperature, the switch activates the fan. In 1986-1989 models, the switch completes the ground circuit for the fan motor, while in 1990-1994 models, it powers the cooling fan relay control circuit. From 1995 onwards, the ECM controls the cooling fan relay, using data from the Engine Coolant Temperature Sensor. To test the fan motor, connect it directly to the battery. If it doesn't work, replace the motor. If the motor is fine but doesn't work normally, the issue could be the coolant temperature switch, cooling fan relay, ECM or wiring harness. Test the temperature switch by bridging the terminals of the switch harness connector. If the fan works, the switch is likely defective. To replace, remove the radiator and fan, detach the fan blade assembly from the motor shaft, and remove the fan motor from the shroud. Reinstall in reverse order.
