How to remove and install a Steering Knuckle on Hyundai Excel?

Take off the wheel cover and loosen the drive axle hub nut. Loosen lug nuts on front wheels, raise vehicle and safely support it with jack stands. Remove front wheels. Remove brake caliper and support it with wire. On 2000 and later models, remove caliper mounting bracket and brake disc. Loosen but do not take out strut-to-steering knuckle bolts/nuts. Separate tie-rod end from steering knuckle arm. Disconnect balljoint from steering knuckle. Now, remove the strut-to-knuckle bolts. Remove steering knuckle assembly from strut, balljoint, and drive axle. Push out of hub if drive axle sticks in the hub splines; support end of drive axle with wire; Installation: Insert driveaxle into hub while guiding the knuckle and hub assembly into position; Push knuckle into strut flange and install bolts, but don't tighten them yet; Put balljoint stud into steering knuckle hole and install nut, but don't tighten it yet; Attach tie-rod to steering knuckle arm; Torque down strut bolt nuts, balljoint nut, tie-rod nut ; Install caliper; Install hub nut tightly; Install wheel and lug nuts ; Lower vehicle and torque lug nuts down firmly ; Torque up the hubnut Have front wheel alignment checked for adjustment if required.

Genuine Hyundai Excel Steering Knuckle

Front Steering Knuckle

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Steering Knuckles found

View related parts

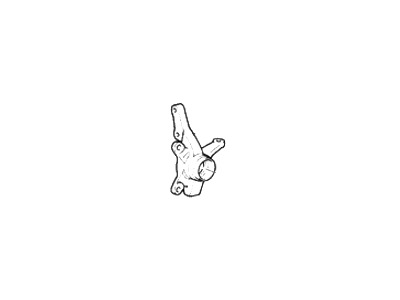

Hyundai Excel Front Axle Knuckle Left Hand
Part Number: 51715-24000
$235.93 MSRP: $331.47
You Save: $95.54 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle-Front Axle,LH; Knuckle, Steering Knuckle
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts

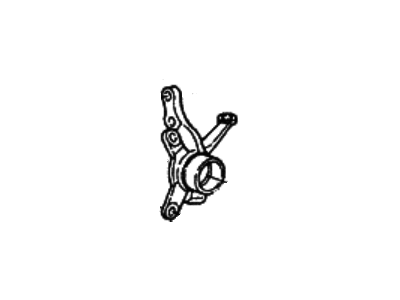

Hyundai Excel Front Axle Knuckle Right Hand
Part Number: 51716-21000
$163.48 MSRP: $229.68
You Save: $66.20 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle-Front Axle,RH; Knuckle, Steering Knuckle
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts

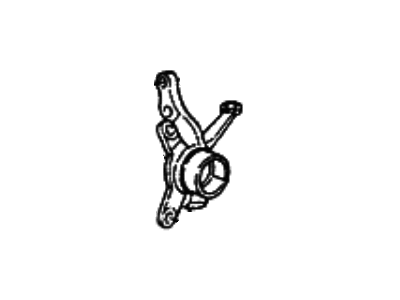

Hyundai Excel Front Axle Knuckle Left Hand
Part Number: 51715-21000
$163.48 MSRP: $229.68
You Save: $66.20 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle-Front Axle,LH; Knuckle
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Front Axle Knuckle Left Hand
Part Number: 51715-21050
$163.48 MSRP: $229.68
You Save: $66.20 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle-Front Axle,LH; Knuckle, Steering Knuckle
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Front Axle Knuckle Right Hand
Part Number: 51716-21050
$163.48 MSRP: $229.68
You Save: $66.20 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle-Front Axle,RH; Knuckle, Steering Knuckle
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Front Axle Knuckle Right Hand
Part Number: 51716-24000
$235.93 MSRP: $331.47
You Save: $95.54 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle-Front Axle,RH; Knuckle, Steering Knuckle
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door

Hyundai Excel Steering Knuckle

The Hyundai Excel Steering Knuckle allows the front wheels to rotate for steering and holds firmly in line with the suspension to keep rides stable and predictable. On all Hyundai front wheel drive configurations, the Steering Knuckle connects the strut, lower arm, tie-rod end, and a hub that the wheel is mounted on, allowing the axle shaft to pass through, which transmits power to the tire and still allows it to easily move up and down over bumps. The Steering Knuckle is the central point of control where steering and suspension forces converge. Early versions applied a hub that was pressed into the Steering Knuckle, but later versions of the Excel use a bolt-on hub that is bolted to the same casting. Both versions achieve the same goal, bringing together the points of steering and suspension in a small, sturdy unit. Unlike the bushings on vintage kingpin setups, ball joints attached to the Steering Knuckle make modern Hyundai cars lighter in effort and easier to service. Though designed to endure, collision bends or oval stud bores do require replacement, as any slop in the Steering Knuckle can throw alignment off and speed tire wear on an otherwise trusty Hyundai Excel.

If you are looking for affordable high-quality OEM Hyundai Excel Steering Knuckle, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Excel Steering Knuckle at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Excel Steering Knuckle Parts Questions & Experts Answers

Front Axle Knuckle Left Hand
51715-24000
Q: How to remove and install a Steering Knuckle on Hyundai Excel?
A:
Take off the wheel cover and loosen the drive axle hub nut. Loosen lug nuts on front wheels, raise vehicle and safely support it with jack stands. Remove front wheels. Remove brake caliper and support it with wire. On 2000 and later models, remove caliper mounting bracket and brake disc. Loosen but do not take out strut-to-steering knuckle bolts/nuts. Separate tie-rod end from steering knuckle arm. Disconnect balljoint from steering knuckle. Now, remove the strut-to-knuckle bolts. Remove steering knuckle assembly from strut, balljoint, and drive axle. Push out of hub if drive axle sticks in the hub splines; support end of drive axle with wire; Installation: Insert driveaxle into hub while guiding the knuckle and hub assembly into position; Push knuckle into strut flange and install bolts, but don't tighten them yet; Put balljoint stud into steering knuckle hole and install nut, but don't tighten it yet; Attach tie-rod to steering knuckle arm; Torque down strut bolt nuts, balljoint nut, tie-rod nut ; Install caliper; Install hub nut tightly; Install wheel and lug nuts ; Lower vehicle and torque lug nuts down firmly ; Torque up the hubnut Have front wheel alignment checked for adjustment if required.
