What is the location of the Idle Control Valve and How to remove and install it on Hyundai Sonata?

The Idle Control Valve is located towards the bottom of the pictures, though it appears black and looks a bit different on the 2.4L four-cylinder and 2.5L/2.7L V8 models; 2006+ models do not include the Idle Control Valve. First of all, remove the cable that is connected to the negative terminal of the battery. Subsequently, unbolt the throttle body and also, pull off the sensor wiring harness. Next, unscrew the Idle Control Valve and erase the whole valve while taking off the Idle Control Valve mounting screws and disposing the broad gasket. For installation reverse the process of removal while making sure to use a new gasket as well as; tighten the Idle Control Valve mounting screws appropriately.

Genuine Hyundai Sonata Idle Control Valve

IACV

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Idle Control Valves found

View related parts

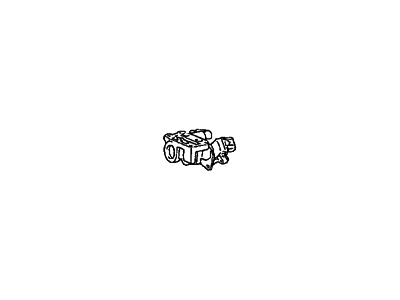

Hyundai Sonata Actuator Assembly-Idle Speed
Part Number: 35150-33010
$253.47 MSRP: $356.11
You Save: $102.64 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Idle Speed Control
- Replaces: 35150-33001
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1998-2005 Hyundai Sonata | High Grade, Middle Grade | 4 Door, 4 Door Sedan
View related parts

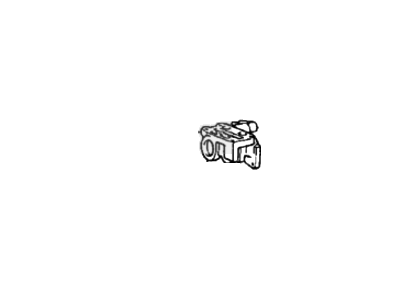

Hyundai Sonata Actuator Assembly-Idle Speed
Part Number: 35150-33001
$253.47 MSRP: $356.11
You Save: $102.64 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 35150-33010
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1998-2001 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Body Kit-Fast Idle Air Valve
Part Number: 35104-33525
$414.98 MSRP: $588.16
You Save: $173.18 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fast Idle Solenoid
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1993-1998 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Body Kit-Fast Idle Air Valve
Part Number: 35104-33140
$409.88 MSRP: $580.94
You Save: $171.06 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 35104-35305
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1988-1998 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Body Kit-Fast Idle Air Valve
Part Number: 35104-35300
$409.88 MSRP: $580.94
You Save: $171.06 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1993-1998 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Body Kit-Fast Idle Air Valve
Part Number: 35104-35305
$409.88 MSRP: $580.94
You Save: $171.06 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fast Idle Solenoid
- Replaces: 35104-33140
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1988-1998 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Body Kit-Fast Idle Air Valve
Part Number: 35104-33060
$184.39 MSRP: $259.06
You Save: $74.67 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fast Idle Solenoid
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1993-1998 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Body Kit-Fast Idle Air Valve
Part Number: 35104-33070
$184.39 MSRP: $259.06
You Save: $74.67 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1988-1993 Hyundai Sonata | High Grade, Middle Grade | 4 Door

Hyundai Sonata Idle Control Valve

The Hyundai Sonata Idle Control Valve ensures the engine remains stable when stopped at intersections by regulating a controlled amount of air around the closed throttle plate. The valve operates under commands from the engine control unit and has an electric stepper motor. The stepper motor drives a plunger to open or restrict a bypass passage in the throttle body. This allows some extra air to sneak past the butterfly so that idle speed doesn't drop when the headlights, A/C, or steering loads kick in. This helps to ensure that Hyundai Sonata models do not stall. The earlier Sonata generations utilized a basic bypass-style Idle Control Valve attached directly to the throttle body of multi-port injection systems. However, the later Hyundai drive-by-wire versions, still using an Idle Control Valve, integrated it with the electronic throttle control to allow quicker response and stability that was missing in earlier generations. The core difference is in actuation where the older unit is mechanically separate and serviceable, and the newer one is digitally synchronized with throttle motor signals. A sticking Idle Control Valve from dirt or air leaks will cause hunting, high revs, or stalling, so periodic cleaning and inspection of this Idle Control Valve keeps every Hyundai Sonata running smooth at idle.

If you are looking for affordable high-quality OEM Hyundai Sonata Idle Control Valve, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Sonata Idle Control Valve at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Sonata Idle Control Valve Parts Questions & Experts Answers

Actuator Assembly-Idle Speed
35150-33010
Q: What is the location of the Idle Control Valve and How to remove and install it on Hyundai Sonata?
A:
The Idle Control Valve is located towards the bottom of the pictures, though it appears black and looks a bit different on the 2.4L four-cylinder and 2.5L/2.7L V8 models; 2006+ models do not include the Idle Control Valve. First of all, remove the cable that is connected to the negative terminal of the battery. Subsequently, unbolt the throttle body and also, pull off the sensor wiring harness. Next, unscrew the Idle Control Valve and erase the whole valve while taking off the Idle Control Valve mounting screws and disposing the broad gasket. For installation reverse the process of removal while making sure to use a new gasket as well as; tighten the Idle Control Valve mounting screws appropriately.
