How to remove the control arm on Hyundai Accent?

Take off the control arm by loosening the lug nuts of the wheel and put the vehicle on jackstands. Detach the front wheels and remove stabilizer bar link from control arm. In old models, take out strut bar-to-control arm bolts and nuts, as well as other balljoint-to-control arm bolt and nut. Pry off control arm from crossmember. In new models, remove balljoint to control arm bolts and rear pivot bushing clamp in addition to removing it. Unbolt front mounting shaft bolts and bracket to separate control arm from chassis. Separate ball joint from steering knuckle for 1995 and later models then remove rear pivot bushing clamp and front pivot bolt nut. Take out balljoint from steering knuckle then remove rear control arm bushing bolt And front control arm bushing bolt on 2006 and later models. For determining whether there is any distortion on the control arms also check if their bushings are worn out or deteriorated in any way. If any of them are damaged or bent replace with a new one while those that have become wobbly should be taken to dealer's service department or automotive machine shop for replacement When installing the control arm, tighten up pivot bushing bolts after raising up a little bit so that you can simulate normal ride height Finally lower your car down again, tight lug nut screw properly, if necessary do alignment of your front end while checking everything.

Genuine Hyundai Accent Control Arm

Suspension Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Control Arms found

View related parts

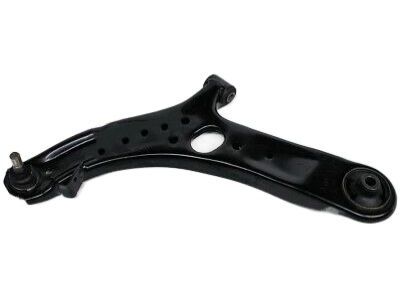

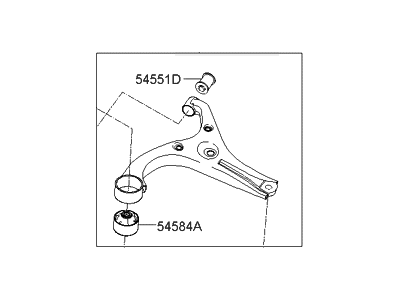

Hyundai Accent Arm Complete-Front Lower,LH
Part Number: 54500-1R000
$275.35 MSRP: $386.85
You Save: $111.50 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Lower Control Arm
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2011-2017 Hyundai Accent | DOHC - GDI | Sedan - 4Door 5P, Sedan - 5Door 5P
View related parts

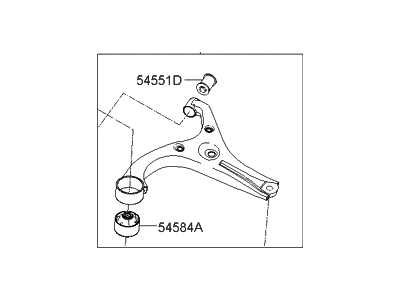

Hyundai Accent Arm Complete-Front Lower,RH
Part Number: 54501-1R000
$275.35 MSRP: $386.85
You Save: $111.50 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Lower Control Arm
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2011-2017 Hyundai Accent | DOHC - GDI | Sedan - 4Door 5P, Sedan - 5Door 5P
View related parts

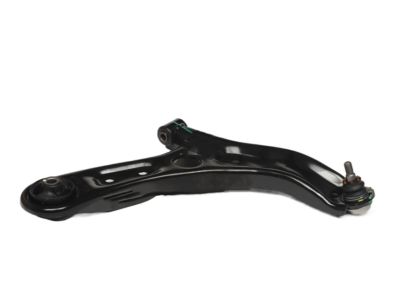

Hyundai Accent Arm Complete-Front Lower,RH
Part Number: 54501-H9000
$181.15 MSRP: $254.52
You Save: $73.37 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Complete-FR LWR,RH; Lower Control Arm
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2018-2022 Hyundai Accent | DOHC - GDI, DOHC - MPI | Sedan - 4Door 5P
View related parts

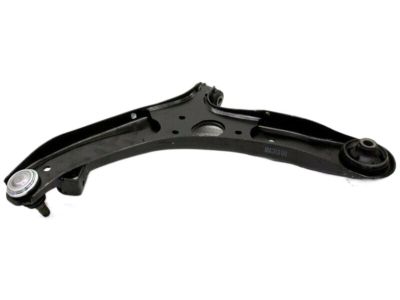

Hyundai Accent Arm Complete-Front Lower,LH
Part Number: 54500-H9000
$181.15 MSRP: $254.52
You Save: $73.37 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Complete-FR LWR,LH; Lower Control Arm
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2018-2022 Hyundai Accent | DOHC - GDI, DOHC - MPI | Sedan - 4Door 5P
View related parts

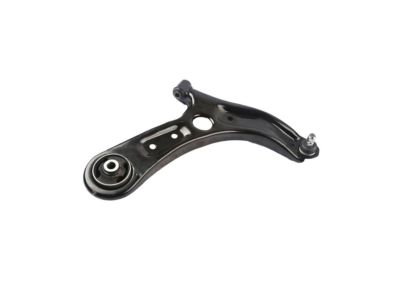

Hyundai Accent Arm Complete-Front Lower,RH
Part Number: 54501-1E000
$308.09 MSRP: $432.85
You Save: $124.76 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Lower Control Arm
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2005-2011 Hyundai Accent | High Grade, Middle Grade | DOHC - MPI | 3 Door Sedan, 4 Door Sedan, Sedan - 3Door 5P, Sedan - 4Door 5P
View related parts
Hyundai Accent Arm Complete-Lower,RH
Part Number: 54501-25000
$342.58 MSRP: $485.55
You Save: $142.97 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Lower Control Arm
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1999-2006 Hyundai Accent | Low Grade, Middle Grade | 3 Door Sedan, 4 Door Sedan
View related parts
Hyundai Accent Arm Complete-Front Lower,LH
Part Number: 54500-1E000
$308.09 MSRP: $432.85
You Save: $124.76 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Lower Control Arm
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2005-2011 Hyundai Accent | High Grade, Middle Grade | DOHC - MPI | 3 Door Sedan, 4 Door Sedan, Sedan - 3Door 5P, Sedan - 4Door 5P
View related parts
Hyundai Accent Arm Complete-Lower,LH
Part Number: 54500-25000
$342.58 MSRP: $485.55
You Save: $142.97 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Lower Control Arm
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1999-2006 Hyundai Accent | Low Grade, Middle Grade | 3 Door Sedan, 4 Door Sedan
View related parts

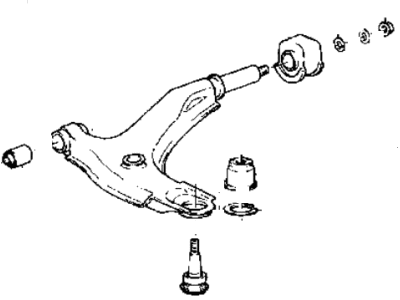

Hyundai Accent Arm & Ball Joint Assembly-Lower,RH
Part Number: 54501-22000
$227.32 MSRP: $319.37
You Save: $92.05 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Passenger Side
- Replaced by: 54501-22100
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1994-1999 Hyundai Accent | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door
View related parts
Hyundai Accent Arm & Ball Joint Assembly-Lower,RH
Part Number: 54501-22100
$227.32 MSRP: $319.37
You Save: $92.05 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Arm, Lower Control Arm
- Position: Passenger Side
- Replaces: 54501-22000
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1994-1999 Hyundai Accent | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door
View related parts
Hyundai Accent Arm & Ball Joint Assembly-Lower,RH
Part Number: 54501-22200
$258.77 MSRP: $363.56
You Save: $104.79 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Arm, Lower Control Arm
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1994-1999 Hyundai Accent | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door

Hyundai Accent Control Arm

Hyundai Accent Control Arm is one of the most important car parts, which improve the Hyundai Accent series' performance and durability. Being one of the suspension systems, the Control Arm is connected between the vehicle's frame and wheels to provide flexibility of wheels to move in accordance with the irregularities of the road to improve handling and safety. As one of the components of the different models of the Hyundai Accent, this component is meant to ensure that the wheels are aligned correctly, thus resulting in lesser wear of the tires and increased fuel efficiency. Hyundai Accent Control Arm was earlier a stamped steel item, but has recently incorporated materials such as cast iron or aluminum, which provides more strength alongside the aspect of less weight. Not only does this innovation enhance the vehicle's maneuverability but also maintain high speed steadiness, which sets it apart from other automobiles in the market. Moreover, the Hyundai Accent Control Arm must be prepared to take an impact; however, it might be vulnerable to rust or bending. There are power performance versions of the Control Arm and the addition of ball joints and bushings adds up to enhance steering and control on the road. In conclusion, Hyundai Accent Control Arm is one of the fine examples of the company's dedication towards the quality and performance aspect and thus, plays a crucial role in the Hyundai Accent's engineering which offers a superior level of efficiency and safety on the road.

If you are looking for affordable high-quality OEM Hyundai Accent Control Arm, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Accent Control Arm at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Accent Control Arm Parts Questions & Experts Answers

Arm Complete-Front Lower,RH
54501-1R000
Q: How to remove the control arm on Hyundai Accent?
A:
Take off the control arm by loosening the lug nuts of the wheel and put the vehicle on jackstands. Detach the front wheels and remove stabilizer bar link from control arm. In old models, take out strut bar-to-control arm bolts and nuts, as well as other balljoint-to-control arm bolt and nut. Pry off control arm from crossmember. In new models, remove balljoint to control arm bolts and rear pivot bushing clamp in addition to removing it. Unbolt front mounting shaft bolts and bracket to separate control arm from chassis. Separate Ball Joint from Steering Knuckle for 1995 and later models then remove rear pivot bushing clamp and front pivot bolt nut. Take out balljoint from steering knuckle then remove rear control arm bushing bolt And front control arm bushing bolt on 2006 and later models. For determining whether there is any distortion on the control arms also check if their bushings are worn out or deteriorated in any way. If any of them are damaged or bent replace with a new one while those that have become wobbly should be taken to dealer's service department or automotive machine shop for replacement When installing the control arm, tighten up pivot bushing bolts after raising up a little bit so that you can simulate normal ride height Finally lower your car down again, tight lug nut screw properly, if necessary do alignment of your front end while checking everything.
