How to remove and install parking brake cables on Hyundai Excel?

This procedure applies to both the right and left cables. Remove the center console. On 1986 through 1989 models, completely unscrew the cable adjusting nut from the cable to be removed. On 1989 and later models, turn the single cable adjusting nut on the equalizer to allow slack in the cable to be removed. Loosen the rear wheel lug nuts on the side of the vehicle on which the cable is to be removed. Raise the rear of the vehicle and support it securely on jackstands. Place blocks in front of the front wheels. Remove the wheel. Remove the brake drum and shoes. Unhook the cable end from the parking brake lever on the brake shoe. Remove the clip that secures the cable to the brake backing plate and pull the cable through the plate. Unhook the cable from the clips on the suspension trailing arm. Remove the rear seat cushion. Lift up the carpet, unscrew the cable clamp bolt and free the cable from the clamp. Pull the cable and grommet through the floor pan into the interior. Installation is the reverse of the removal procedure. After the cable is installed, adjust the parking brake.

Genuine Hyundai Excel Parking Brake Cable

Emergency Parking Brake Release Cable

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Parking Brake Cables found

View related parts

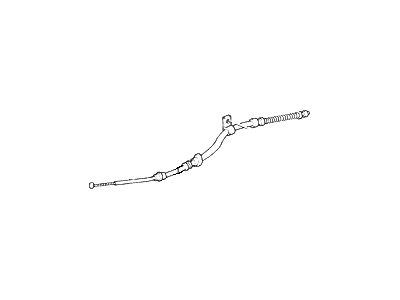

Hyundai Excel Park Brake Cable Assembly Left Hand
Part Number: 59760-23301
$71.67 MSRP: $100.69
You Save: $29.02 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Park Brake,LH; Cable
- Position: Driver Side
- Replaces: 59770-23301
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts

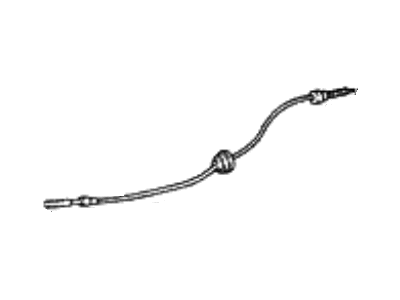

Hyundai Excel Parking Brake Cable Assembly Right Hand
Part Number: 59770-21320
$66.26 MSRP: $93.10
You Save: $26.84 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Parking Brake,RH; Cable
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Parking Brake Cable Assembly Right Hand
Part Number: 59770-23301
$71.67 MSRP: $100.69
You Save: $29.02 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Parking Brake,RH
- Position: Passenger Side
- Replaced by: 59760-23301
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Parking Brake Cable Assembly Right Hand
Part Number: 59770-24002
$71.67 MSRP: $100.69
You Save: $29.02 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Parking Brake,RH
- Position: Passenger Side
- Replaced by: 59760-24002
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Park Brake Cable Assembly Left Hand
Part Number: 59760-21320
$77.02 MSRP: $108.21
You Save: $31.19 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Park Brake,LH; Cable
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Cable Assembly-Park Brake
Part Number: 59760-21000
$77.93 MSRP: $109.48
You Save: $31.55 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Park Brake Cable Assembly Left Hand
Part Number: 59760-24002
Product Specifications
- Other Name: Cable Assembly-Park Brake,LH; Cable
- Position: Driver Side
- Replaces: 59770-24002
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door

Hyundai Excel Parking Brake Cable

Hyundai Excel Parking Brake Cable locks the wheels when the car is parked, giving drivers confidence that the vehicle will sit still on flat ground or steep hills. Running from the hand lever or foot pedal to the rear mechanism, the Parking Brake Cable turns a simple pull into mechanical force that clamps the brakes even if the hydraulic system fails. In every Hyundai Excel year, the cable acts as a sturdy steel link sheathed for protection, sliding smoothly in its housing to send tension without big stretch. Because the Parking Brake Cable works free of brake fluid, it offers a vital backup stop if the main pedal loses pressure. Across the span of Excel production, only minor updates such as better corrosion shielding separate early and later versions, so there is really one style, making choice simple. Keeping the Parking Brake Cable clean and correctly adjusted lets each Hyundai hold a hill firmly while preventing uneven rear brake wear. If a driver feels extra lever travel, that hints the Parking Brake Cable needs inspection, since friction and debris can raise resistance over time in a high-mileage Hyundai Excel.

If you are looking for affordable high-quality OEM Hyundai Excel Parking Brake Cable, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Excel Parking Brake Cable at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Excel Parking Brake Cable Parts Questions & Experts Answers

Park Brake Cable Assembly Left Hand
59760-23301
Q: How to remove and install parking brake cables on Hyundai Excel?
A:
This procedure applies to both the right and left cables. Remove the center console. On 1986 through 1989 models, completely unscrew the cable adjusting nut from the cable to be removed. On 1989 and later models, turn the single cable adjusting nut on the equalizer to allow slack in the cable to be removed. Loosen the rear wheel lug nuts on the side of the vehicle on which the cable is to be removed. Raise the rear of the vehicle and support it securely on jackstands. Place blocks in front of the front wheels. Remove the wheel. Remove the brake drum and shoes. Unhook the cable end from the parking brake lever on the Brake Shoe. Remove the clip that secures the cable to the brake backing plate and pull the cable through the plate. Unhook the cable from the clips on the suspension trailing arm. Remove the rear seat cushion. Lift up the carpet, unscrew the cable clamp bolt and free the cable from the clamp. Pull the cable and grommet through the floor pan into the interior. Installation is the reverse of the removal procedure. After the cable is installed, adjust the parking brake.
