How to replace a wheel cylinder on Hyundai Excel?

Never replace only one wheel cylinder-always replace both of them at the same time. Raise the rear of the vehicle and support it securely on jackstands. Block the front wheels to keep the vehicle from rolling. Remove the brake shoe assembly. Remove all dirt and foreign material from around the wheel cylinder. Unscrew the brake line fitting from the inner side of the brake backing plate. Use a flare nut wrench, if available, to prevent rounding off the corners of the fitting. Don't pull the brake line away from the wheel cylinder. Remove the wheel cylinder mounting bolts from the inner side of the brake backing plate. Detach the wheel cylinder from the brake backing plate and place it on a clean workbench. Immediately plug the brake line to prevent fluid loss and contamination. If the brake shoe linings are contaminated with brake fluid, install new brake shoes. Apply a thin coat of RTV sealant to the backing plate where the wheel cylinder seats, place the cylinder in position and install the mounting bolts. Connect the brake line and tighten the fitting, then lighten the wheel cylinder bolls. Install the brake shoe assembly. Bleed the brakes. Check brake operation before driving the vehicle in traffic.

Genuine Hyundai Excel Wheel Cylinder

Brake Wheel Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Wheel Cylinders found

View related parts

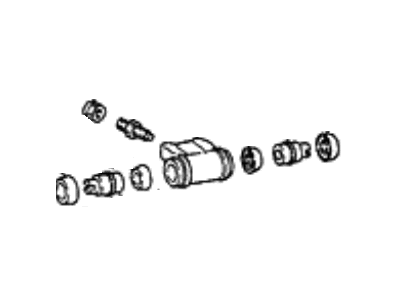

Hyundai Excel Cylinder Assembly-Wheel,LH
Part Number: 58330-24003
$94.70 MSRP: $133.05
You Save: $38.35 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly-Rear Brake LH,RH; Wheel Cylinder
- Position: lower
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts

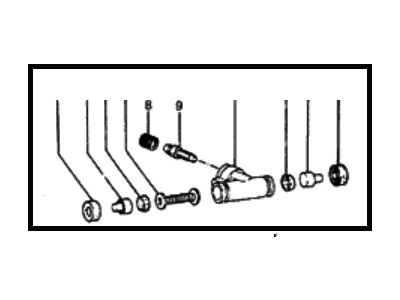

Hyundai Excel Cylinder Assembly-Wheel
Part Number: 58330-21300
$198.13 MSRP: $278.37
You Save: $80.24 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Cylinder
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Cylinder Assembly-Wheel
Part Number: 58330-21321
$66.78 MSRP: $93.82
You Save: $27.04 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Cylinder
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Cylinder Assembly-Wheel,RH
Part Number: 58380-24003
$78.43 MSRP: $110.19
You Save: $31.76 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Cylinder
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Cylinder Assembly-Wheel
Part Number: 58330-23300
Product Specifications
- Other Name: Wheel Cylinder
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door

Hyundai Excel Wheel Cylinder

The Hyundai Excel Wheel Cylinder provides the clamping force that squeezes the brake shoes in the rear against the drum, allowing the compact car to brake safely. Fluid from the brake line flows into the center of the bore. Hydraulic pressure pushes twin pistons out. Shoes bite the drum and cup seal lips swell to prevent leaks, and return springs pull everything back in once the pedal is released. A built-in expander spring ensures seals are kept in place during off-brake moments. A bleeder screw on top of the expander allows trapped air to be cleared for a firm pedal feel. Early Hyundai Excel models had solid cast iron Wheel Cylinder bodies. Later Hyundai variants had more lightweight aluminum Wheel Cylinder casings that are rustproof, but both versions of Excels share dust boots, twin pistons, and seals and have the same plunger action. The moisture in glycol fluid can cause pitting of the bore, so a dragging brake, seized Wheel Cylinder, or sinking pedal is a warning that there is trouble. Minor scars make it possible to rebuild a Wheel Cylinder, but severe wear requires a complete replacement to ensure every Hyundai Excel is stopping confidently.

If you are looking for affordable high-quality OEM Hyundai Excel Wheel Cylinder, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Excel Wheel Cylinder at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Excel Wheel Cylinder Parts Questions & Experts Answers

Cylinder Assembly-Wheel
58330-23300
Q: How to replace a wheel cylinder on Hyundai Excel?
A:
Never replace only one wheel cylinder-always replace both of them at the same time. Raise the rear of the vehicle and support it securely on jackstands. Block the front wheels to keep the vehicle from rolling. Remove the Brake Shoe assembly. Remove all dirt and foreign material from around the wheel cylinder. Unscrew the Brake Line fitting from the inner side of the brake backing plate. Use a flare nut wrench, if available, to prevent rounding off the corners of the fitting. Don't pull the brake line away from the wheel cylinder. Remove the wheel cylinder mounting bolts from the inner side of the brake backing plate. Detach the wheel cylinder from the brake backing plate and place it on a clean workbench. Immediately plug the brake line to prevent fluid loss and contamination. If the brake shoe linings are contaminated with brake fluid, install new brake shoes. Apply a thin coat of RTV sealant to the backing plate where the wheel cylinder seats, place the cylinder in position and install the mounting bolts. Connect the brake line and tighten the fitting, then lighten the wheel cylinder bolls. Install the brake shoe assembly. Bleed the brakes. Check brake operation before driving the vehicle in traffic.
