Genuine Hyundai Intake Manifold
Engine Intake Manifold- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
153 Intake Manifolds found

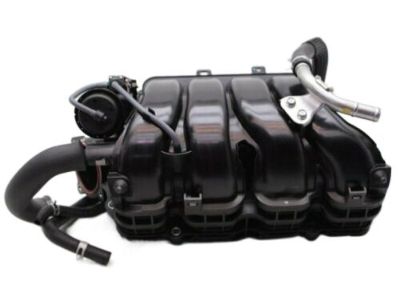

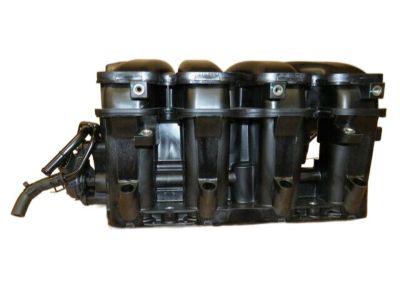

Hyundai Manifold Assembly-Intake
Part Number: 28310-2GGA0$274.43 MSRP: $385.56You Save: $111.13 (29%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold

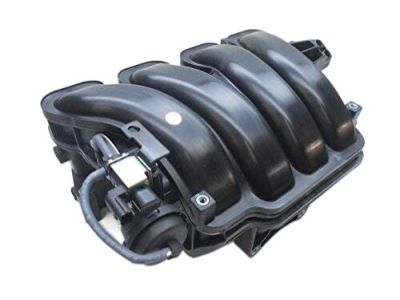

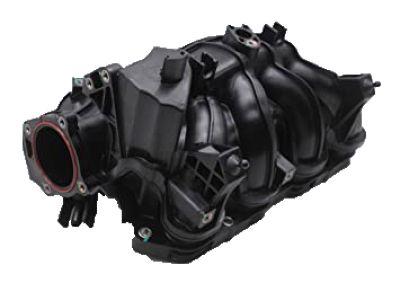

Hyundai Manifold Assembly-Intake
Part Number: 28310-2G080$439.96 MSRP: $623.56You Save: $183.60 (30%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Intake Manifold
- Replaces: 28310-2G060

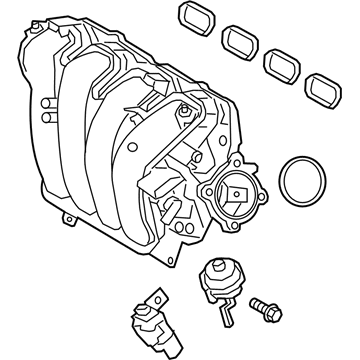

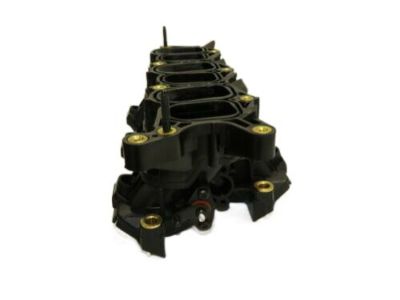

Hyundai Manifold Assembly-Intake
Part Number: 28310-2G090$439.96 MSRP: $623.56You Save: $183.60 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
- Replaces: 28310-2G050

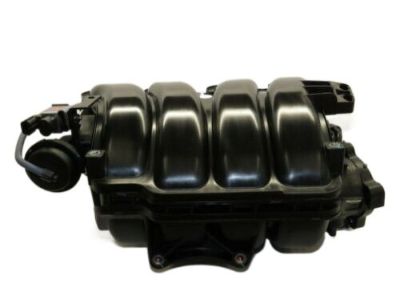

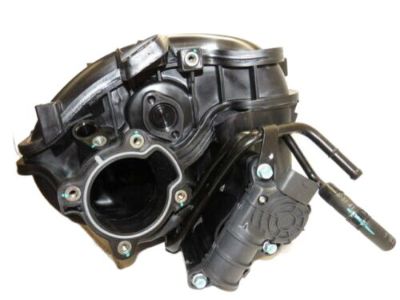

Hyundai Manifold Assembly-Intake
Part Number: 28310-3CAA0$355.29 MSRP: $503.56You Save: $148.27 (30%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Intake Manifold

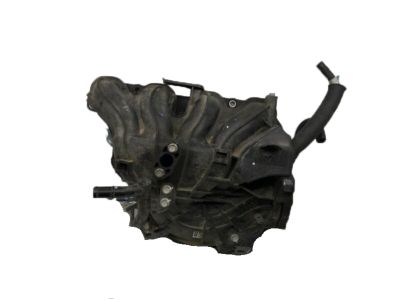

Hyundai Manifold Assembly-Intake
Part Number: 28310-2GTA1$230.71 MSRP: $324.15You Save: $93.44 (29%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Intake Manifold

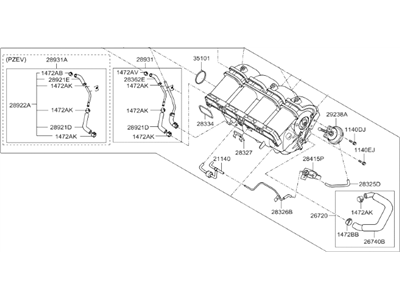

Hyundai Manifold Assembly-Intake
Part Number: 28310-2B700$267.90 MSRP: $376.39You Save: $108.49 (29%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold

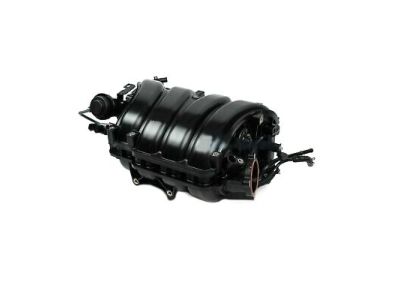

Hyundai Manifold Assembly-Intake
Part Number: 28310-2G071$524.87 MSRP: $743.90You Save: $219.03 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
- Replaces: 28310-2G070

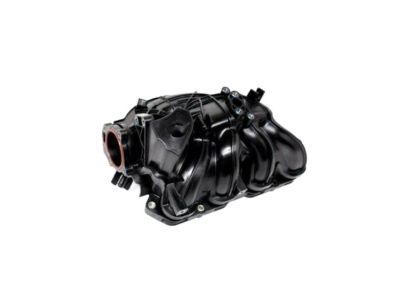

Hyundai Manifold Assembly-Intake
Part Number: 28310-2G070$525.79 MSRP: $743.90You Save: $218.11 (30%)Ships in 1-2 Business DaysProduct Specifications- Replaced by: 28310-2G071
Hyundai Manifold Assembly-Intake
Part Number: 28310-2E200$404.00 MSRP: $572.60You Save: $168.60 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
Hyundai Manifold Assembly-Intake
Part Number: 28310-2B760$422.64 MSRP: $599.02You Save: $176.38 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
Hyundai Manifold Assembly-Intake
Part Number: 28310-2E701$394.50 MSRP: $559.13You Save: $164.63 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
Hyundai Manifold Assembly-Intake
Part Number: 28310-2B775$252.11 MSRP: $354.21You Save: $102.10 (29%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
Hyundai Manifold Assembly-Intake
Part Number: 28310-3CFA0$413.49 MSRP: $586.05You Save: $172.56 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
Hyundai Manifold Assembly-Intake
Part Number: 28310-2EAA0$350.20 MSRP: $496.34You Save: $146.14 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
Hyundai Manifold Assembly-Intake
Part Number: 28310-2G700$436.89 MSRP: $619.21You Save: $182.32 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
Hyundai Manifold Assembly-Intake
Part Number: 28310-2G900$255.25 MSRP: $358.61You Save: $103.36 (29%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
Hyundai Manifold Assembly-Intake
Part Number: 28310-2E767$394.50 MSRP: $559.13You Save: $164.63 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
Hyundai Manifold Assembly-Intake
Part Number: 28310-2G810$342.17 MSRP: $484.97You Save: $142.80 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
Hyundai Manifold Assembly-Intake
Part Number: 28310-2E704$433.16 MSRP: $613.92You Save: $180.76 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
Hyundai Manifold Assembly-Intake
Part Number: 28310-2G710$436.89 MSRP: $619.21You Save: $182.32 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Intake Manifold
| Page 1 of 8 |Next >
1-20 of 153 Results
About Hyundai Intake Manifold
The function of the intake manifold is to fairly distribute the air-fuel mixture to the cylinders as well as to the carburetor on a non-fuel-injected engine. The intake manifold holds the opposite function comparing to the exhaust manifold which collects gases from the cylinders. Sometimes, even the Check Engine Light is on, you have no idea which part in the engine system should be checked, so it is necessary for you to know the signs of a failing intake manifold. A vacuum leak can be the reason for engine stall since excessive air coming to the engine. What's more, it can also cause a very high idle rpm, or idle to constantly rise and fall on its own. A hissing noise is also an indication for a failing intake manifold. Check your intake manifold in time to make sure you have a safe drive. We are glad to offer you Hyundai genuine OEM intake manifold with a discounted price.
Hyundai Intake Manifold Parts Questions & Experts Answers
- Q: How to remove and install Intake Manifold on 2012 and later Hyundai Accent?A: To remove the components first Loosen the negative terminal bolt off the battery and then take off the top engine cover. Further, unfasten the oil dipstick mounting bolt and remove the dipstick tube from the top oil pan and dispose off the O-ring. Next, eliminate the air intake duct and the resonator; also, tip the car and drain the cooling system, and then remove the upper radiator hose. Remove the electrical connectors in the OCV valve, VIS, oil pressure sending unit, knock sensor, A/C compressor, fuel injectors, throttle body, MAP sensor, IAT sensor, and VCM. Return also the brake booster hose and the PCV hose and unplug the canister purge solenoid. Loosen the filler neck assembly to raise it aside, then undo the intake manifold bolts to pull off the manifold inclusive of the throttle body. On the installation process you will have to require cleaning of the mating surfaces of the intake manifold and the cylinder head with brake system cleaner and checking of gasket for leakage and Manor for warpage. Position the gasket and the manifold over the studs on the cylinder head in the engine, then set the nuts/bolts to the prescribed torque setting, in a progressive manner; starting with the middle bolts and then the outermost bolts. Replace the rest of the components in reverse manner and fill the coolant and replace it if necessary then start the engine in order to look for a leaks in coolant and vacuum. Last but not the least, perform a road test in the vehicle to check the efficient functioning of all the added equipment and cruise control if available.
- Q: How to remove and insatall Intake Manifold on four cylinder Hyundai Santa Fe?A: To remove the intake manifold, first relieve the fuel system pressure and disconnect the negative cable from the battery. Next, remove the engine cover, air intake duct, and resonator, then detach the vent hose from the throttle body. Disconnect the throttle cable and the wiring from the MAP and IAT sensors, clamp off the coolant hoses connected to the throttle body, and disconnect them. Also, disconnect the brake booster hose and the PCV hose. For 2007 and earlier models, relieve the fuel system pressure and disconnect the fuel supply hose from the fuel rail, then remove the fuel rail along with the injectors before taking off the intake manifold with the throttle body. For installation, clean the mating surfaces of the intake manifold and cylinder head mounting surface with brake system cleaner, checking the gasket for leaks and the manifold for warpage. Install the manifold and gasket over the studs on the cylinder head, tightening the manifold-to-cylinder head nuts/bolts in three or four equal steps to the specified torque, working from the middle bolts outward to avoid flexing. Reinstall the remaining parts in reverse order, check the coolant level and add as necessary, then run the engine to check for coolant and vacuum leaks. Finally, road test the vehicle to ensure proper operation of all accessories, including the cruise control system if equipped.
- Q: How to remove and insatall Intake Manifold on four cylinder Hyundai Sonata?A: To remove the intake manifold, first relieve the fuel system pressure, then disconnect the negative cable from the battery. Next, remove the engine cover, followed by the air intake duct and air filter housing. Remove the vent hose from the throttle body and disconnect the throttle cable if equipped. Clamp off the coolant hoses connected to the throttle body and disconnect them. Disconnect all interfering wiring, ensuring to label each connector to avoid confusion later, and disconnect the brake booster hose and the PCV hose. For 2010 and earlier models, remove the fuel rail along with the injectors, then remove the lower intake manifold brace, and on 2006 and later models, remove the oil dipstick assembly. Finally, remove the intake manifold along with the throttle body. For installation, clean the mating surfaces of the intake manifold and the cylinder head mounting surface with brake system cleaner, then install the manifold and gasket on the cylinder head and secure with mounting fasteners. Tighten the manifold-to-cylinder head nuts/bolts in three or four equal steps to the specified torque, working from the middle bolts outward to prevent flexing. Reinstall the remaining parts in the reverse order of removal, check the coolant level and add as necessary, then run the engine to check for coolant and vacuum leaks. Finally, road test the vehicle to ensure proper operation.
