Fuel System fit your 2013 Hyundai Elantra US Alabama made

2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.FUEL SYSTEM (01/02)
    2013 Hyundai Elantra Fuel System Diagram 1
  • 2.FUEL SYSTEM (02/02)
    2013 Hyundai Elantra Fuel System Diagram 2
View by Part Code
Part Code
Part No.
Part Description
Retail
Price
Your
Price
Qty.
Part No. & Part Description
  • 1125ADHyundai 11254-06206-B
    Bolt
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    • Require Quantity:
      2
    • Package Quantity:
      1
    $1.05$0.77
    1
    Add To Cart
  • 1125DLHyundai 11251-08256-B
    Bolt(W/Washer)
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    • Replaced By:
      64195-B8000
    $1.97$1.46
    1
    Add To Cart
  • 1125GBHyundai 11253-06206-B
    Bolt(W/Washer)
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    • Require Quantity:
      2
    • Package Quantity:
      1
    $0.79$0.59
    1
    Add To Cart
  • Select vehicle options to narrow down resultCanister & Holder Assy

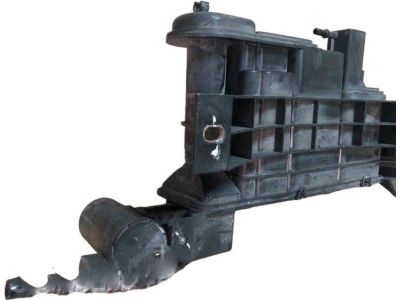

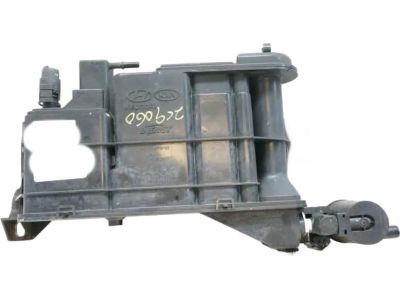

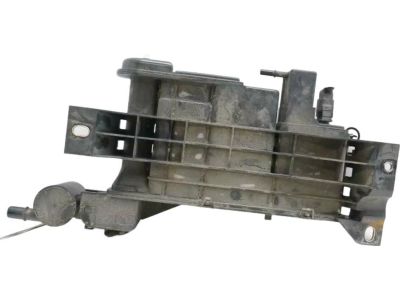

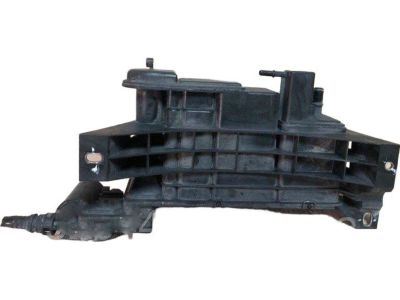

    31410HHyundai 31410-3X500
    Canister & Holder Assy
    • Fit Note:
      EMISSION REGULATION - FED. 11
    • Production Date:
      10/2010-12/2013
    $523.85$385.85
    1
    Add To Cart
  • 31410HHyundai 31410-3X600
    Canister & Holder Assy
    • Fit Note:
      EMISSION REGULATION - CAL. 11
    • Production Date:
      10/2010-12/2013
    $501.71$369.54
    1
    Add To Cart
  • 54659Hyundai 54659-26000
    Nut
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    • Require Quantity:
      2
    • Package Quantity:
      1
    • Replaced By:
      31109-3S000
    $2.34$1.74
    1
    Add To Cart
  • 1327ACHyundai 13270-08007-K
    Nut-Washer Assy
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    • Require Quantity:
      2
    • Package Quantity:
      1
    $2.50$1.86
    1
    Add To Cart
  • 31101Hyundai 31101-3Q500
    Pad-Fuel Tank
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    • Require Quantity:
      2
    • Package Quantity:
      1
    $57.84$42.96
    1
    Add To Cart
  • 31101AHyundai 31101-1U000
    Pad-Fuel Tank
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    • Require Quantity:
      6
    • Package Quantity:
      1
    $46.39$34.45
    1
    Add To Cart
  • 31101EHyundai 31101-3X500
    31101-3X500
    Pad-Fuel Tank
    • Fit Note:
      EMISSION REGULATION - CAL. 11
    • Require Quantity:
      2
    ----
  • 31102P
    Pad-Fuel Tank
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    • Require Quantity:
      2
    • Package Quantity:
      1
    $13.63$10.12
    1
    Add To Cart
  • 31103FHyundai 31102-3X500
    Pad-Fuel Tank
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    $13.63$10.12
    1
    Add To Cart
  • 31152RHyundai 31152-0W000
    Ring-Lock
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    $38.11$28.31
    1
    Add To Cart
  • Select vehicle options to narrow down resultTank Assy-Fuel
    31150Hyundai 31150-3X500
    Tank Assy-Fuel
    • Fit Note:
      EMISSION REGULATION - FED. 11
    • Production Date:
      10/2010-12/2013
    $1087.47$800.99
    1
    Add To Cart
  • 31150Hyundai 31150-3X600
    Tank Assy-Fuel
    • Fit Note:
      EMISSION REGULATION - CAL. 11
    • Production Date:
      10/2010-12/2013
    $1005.19$740.39
    1
    Add To Cart
  • 31010BHyundai 31015-2C800
    Tether
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    ----
  • 31174THyundai 31174-3X500
    Tube-Fuel Vent
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    $129.81$96.42
    1
    Add To Cart
  • Select vehicle options to narrow down resultValve Assy-2 Way & Cut
    31190BHyundai 31190-3X000
    Valve Assy-2 Way & Cut
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    • Production Date:
      10/2010
    $38.08$28.28
    1
    Add To Cart
  • 31190BHyundai 31190-3X500
    Valve Assy-2 Way & Cut
    • Fit Note:
      EMISSION REGULATION - CAL. 11
      EMISSION REGULATION - FED. 11
    • Production Date:
      10/2010-12/2013
    $38.08$28.28
    1
    Add To Cart
Genuine Hyundai Parts, the Right Choice
HyundaiPartsDeal.com offers the wholesale prices for genuine 2013 Hyundai Elantra US Alabama made parts. Parts like Fuel System are shipped directly from authorized Hyundai dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine Capacity: DOHC - MPI. Body: Sedan - 4Door 5P.
