Throttle Body & Injector fit your 2017 Hyundai Santa Fe
Currently shopping for
2017 Hyundai Santa Fe
Change VehicleVehicle Options
3.3L Lambda 2; DOHC - GDI; Gasoline - UnleadedVehicle Options
3.3L Lambda 2; DOHC - GDI; Gasoline - UnleadedCategories Close X
Currently selected
Engine
- Accelerator Pedal
- Air Cleaner
- Alternator
- Battery & Cable
- Belt Cover & Oil Pan
- Brake & Clutch Pedal
- Camshaft & Valve
- Coolant Pipe & Hose
- Coolant Pump
- Crankshaft & Piston
- Cylinder Block
- Cylinder Head
- Electronic Control
- Engine & Transaxle Mounting
- Engine Cooling System
- Engine Gasket Kit
- Exhaust Manifold
- Front Case & Oil Filter
- Fuel Line
- Fuel System
- Intake Manifold
- Muffler & Exhaust Pipe
- OVM Tool
- Oil Cooling
- Rocker Cover
- Short Engine Assy
- Spark Plug & Cable
- Starter
- Sub Engine
- Throttle Body & Injector
- Under Cover
Other Categories
Body
Chassis
Electrical
Transmission
Trim
Accessories
Parts Questions

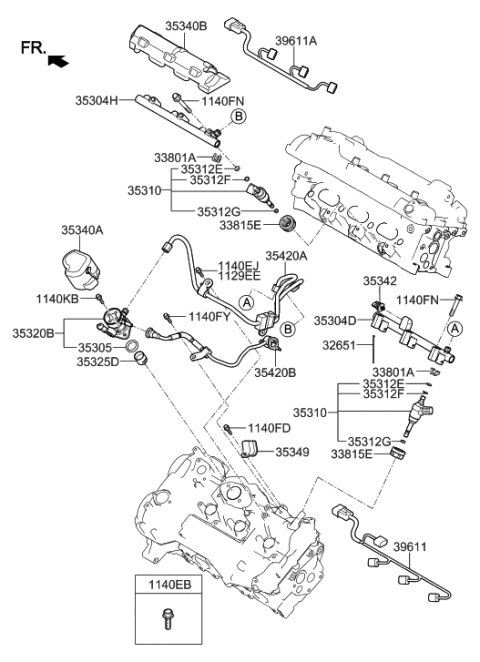

Diagram (1 of 1): THROTTLE BODY & INJECTOR> [3.3L Lambda 2]
Enlarge Diagram
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 35312F
35312-3C710
Backup O-Ring- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Require Quantity: 3
- Package Quantity: 1
$41.23 $29.601
- 1129EE
11293-06166-K
Bolt- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Require Quantity: 2
- Package Quantity: 1
$1.16 $0.901
- 1140EB
11403-08256-K
Bolt- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Replaced By: 11403-08256-P
$1.29 $1.001
- 1140EJ
11403-06126-K
Bolt- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Require Quantity: 2
- Package Quantity: 10
$0.45 $0.3510
- 1140FD
11403-08166-K
Bolt- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Replaced By: 11403-08166-P
$2.34 $1.811
- 1140FN
11403-08506-K
Bolt- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Require Quantity: 6
- Package Quantity: 10
$1.63 $1.2610
- 1140FY
11403-06146-K
Bolt- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Require Quantity: 4
- Package Quantity: 1
$0.92 $0.711
- 1140KB
11405-06206-K
Bolt-Flange- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Require Quantity: 2
- Package Quantity: 1
$0.73 $0.561
- 33801A
35309-3C550
Clip-Injector- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Require Quantity: 6
- Package Quantity: 1
$15.23 $11.781
- 35340B
35345-3C350
Foam-Injector- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
$24.90 $19.271
- 35340A
35345-3C310
Foam-Pump- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
$25.58 $19.791
- 35304D
35304-3C551
Fuel Rail, LH- Location: Driver Side
- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
$618.53 $436.411
- 35304H
35304-3C651
Fuel Rail, RH- Location: Passenger Side
- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
$637.74 $449.971
- Harness-Injector, LH39611
35341-3C550
Harness-Injector, LH- Location: Driver Side
- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Production Date: 11/2015-11/2018
$220.77 $160.831 - 3961135341-3C560
Harness-Injector, LH- Location: Driver Side
- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Production Date: 07/2016-11/2018
$209.03 $152.281 - 3961135341-3C590
Harness-Injector, LH- Location: Driver Side
- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Production Date: 07/2016-11/2018
$185.79 $135.351
- Harness-Injector, RH39611A
35341-3C650
Harness-Injector, RH- Location: Passenger Side
- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Production Date: 11/2015-11/2018
$123.34 $89.851 - 39611A35341-3C690
Harness-Injector, RH- Location: Passenger Side
- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Production Date: 07/2016-11/2018
$202.79 $147.731
- High Pressure Sensor35342
35342-2B100
High Pressure Sensor- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Production Date: 11/2015-11/2018
- Replaced By: 35342-2E500
$224.71 $163.701 - 35342
35342-2E500
High Pressure Sensor- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Production Date: 07/2016-11/2018
$224.71 $159.941
- 35310
35310-3C560
Injector Assy-Fuel- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Require Quantity: 6
- Package Quantity: 1
$461.95 $328.801
- 35305
35322-3C210
O-Ring- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
$3.58 $2.771
- 35420A
35305-3C104
Pipe Assy-Fuel High(FF)- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
$167.89 $122.311
- 35420B
35305-3C330
Pipe Assy-Fuel Lower(FF)- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
$234.61 $170.921
- 35349
35349-3CFA0
Protector-Surge Tank- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
$12.92 $10.001
- 35320B
35320-3C220
Pump Assy-Fuel- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
$987.39 $690.541
- 35325D
35325-2G700
Roller Tappet- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
$151.16 $110.121
- 32651
35315-2G000
Strap- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Require Quantity: 8
- Package Quantity: 1
- Replaced By: 17993-16000
$1.16 $0.901
- 35312G
35312-3C730
Tip Seal-Injector- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Require Quantity: 6
- Package Quantity: 1
- Replaced By: 35313-2T000
$40.13 $28.811
- 35312E
35312-3C700
Upper O-Ring- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Require Quantity: 3
- Package Quantity: 1
$23.16 $17.921
- 33815E
35313-3C200
Washer-Injector Bracket- Fit Note: EMISSION REGULATION - EURO 3, EMISSION REGULATION - EURO 4, EMISSION REGULATION - EURO 5, TAIWAN, CHILE
- Require Quantity: 6
- Package Quantity: 1
$19.63 $15.191
Genuine Hyundai Parts, the Right Choice
HyundaiPartsDeal.com offers the wholesale prices for genuine 2017 Hyundai Santa Fe parts. Parts like Throttle Body & Injector are shipped directly from authorized Hyundai dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: DOHC - GDI. Body: Wagon - Long 5Door 6P, Wagon - Long 5Door 7P.
