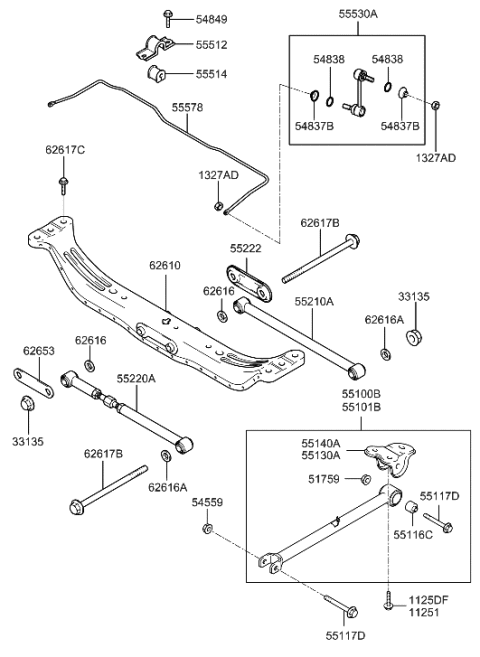

Hyundai 55511-2D000 Bar-Rear Stabilizer

Loosen the wheel lug nuts, raise the front of the vehicle, and support it securely on jackstands before removing the wheels. Disconnect both sway bar links from the sway bar kit by removing the upper nut and the nut that attaches the link to the control arm. Remove the sway bar kit clamps by taking out the bushing clamp nuts and bolts from both sides. For 2000 and earlier models, remove the steering gear assembly for access. For 2011 and later models, disconnect the lower control arms and the lower roll rod mount, then support the engine from above with an engine support fixture or an engine hoist and lower the subframe. Remove the sway bar kit by guiding it out from the right (passenger's) side of the vehicle. Inspect the clamp bushings and the link balljoints; replace any cracked or torn bushings and any loose link balljoints. Installation is the reverse of removal, ensuring that all fasteners are tightened.

Loosen the rear wheel lug nuts, raise the rear of the vehicle, and support it securely on jackstands before removing the wheels. Next, take off the sway bar kit-to-link nuts; if only the sway bar kit is being removed, detach the nut that connects it to the link, and if the strut is being removed, take off the nut from the upper end of the link, then separate the links from the bar. Remove the bushing clamp bolts and nuts from the rear crossmember by detaching the bolts from each clamp to disconnect the rear sway bar bushing clamps, and then take out the sway bar kit. Inspect the clamp bushings and link balljoints, replacing any cracked or torn bushings and any loose link balljoints. For installation, reverse the removal process, ensuring all fasteners are tightened. Finally, install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts.
