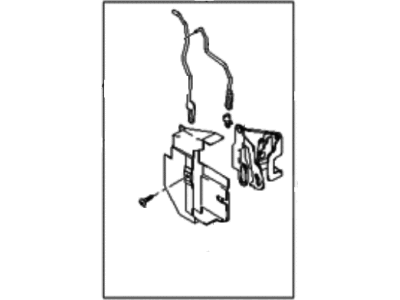

Hyundai 81320-38001 Latch Assembly-Front Door,RH

6. Remove the window glass (see Section 18). 7. Disconnect the door wiring harness where it connects to the door hinge jamb and pull the harness into the door. 8. Remove the fasteners securing the inner panel and lift it out, being careful to thread the door latch cables through as you do so. Disconnect the wiring harness and speaker connection. 9. Remove the door operator module, outside handle, and its pad (see Step 18). 10. Remove the outside handle base from inside the door. 11. Remove the latch bolts and lift out the latch. 12. Installation is the reverse of removal.

The hinges and latch assemblies should be lubricated once every 3000 miles or every three months.

The door and trunk locks should be lubricated with spray-on graphite lubricant.
