How toremove the wheel cover and Axle Shaft on Hyundai Excel?

To remove the wheel cover and loosen the axle shaft hub nut, raise the front of the vehicle and support it securely on jackstands. Remove the front wheel. Remove the axle shaft hub nut by bracing a screwdriver across two of the wheel studs. On 1994 and earlier models, remove the two balljoint-to-lower arm bolts/nuts and separate the lower arm from the balljoint. On 1995 and later models, detach the lower arm balljoint from the strut knuckle assembly, detach the steering tie-rod, and detach the stabilizer bar. Press the axle shaft from the hub with a puller, then pull out on the steering knuckle and remove the outer end of the axle shaft from the hub splines. Before removing the axle shaft from the transaxle, drain the transaxle fluid. Carefully insert a prybar between the transaxle case at the case rib and the Constant Velocity (CV) axle shaft joint and pry while supporting the CV joints. Do not insert the prybar too deep to prevent damage to the differential oil seal. Pry the old circlip from the inner end of the axle shaft and install a new one. Lubricate the differential seal with multi-purpose grease, raise the axle shaft into position while supporting the CV joints and insert the splined end of the inner CV joint into the differential side gear. Apply a light coat of multi-purpose grease to the outer CV joint splines, pull out on the strut steering knuckle assembly and install the stub axle in the hub. Connect the balljoint to the lower arm. Install the hub nut using a new large washer underneath it. Grasp the inner CV joint housing and pull out to make sure that the axle shaft has seated securely in the transaxle. Install the wheel and lower the vehicle. Tighten the hub nut to the specified torque and install the wheel cover.

Genuine Hyundai Excel Axle Shaft

Car Axle Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Axle Shafts found

View related parts

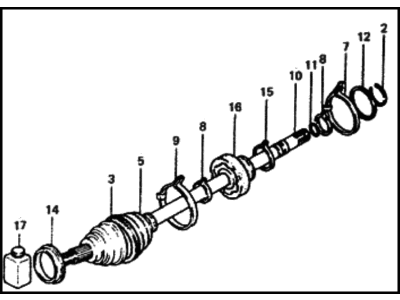

Hyundai Excel Joint & Shaft Kit-Front Axle W
Part Number: 49507-24A01
$134.19 MSRP: $203.50
You Save: $69.31 (35%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint & Shaft Kit-Front Axle Wheel,LH
- Position: Driver Side
- Replaced by: 49507-24A01-RM
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts

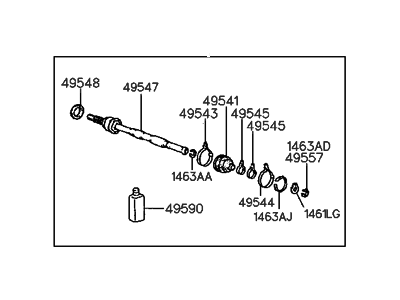

Hyundai Excel Joint & Shaft Kit-Front Axle W
Part Number: 49507-21000
$211.27 MSRP: $296.31
You Save: $85.04 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint & Shaft Kit-Front Axle Wheel,LH
- Position: Driver Side
- Replaced by: 49507-21A00
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Joint & Shaft Kit-Front Axle W
Part Number: 49507-21001
$211.27 MSRP: $296.31
You Save: $85.04 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint & Shaft Kit-Front Axle Wheel,LH
- Position: Driver Side
- Replaced by: 49507-21A00
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Joint & Shaft Kit-Front Axle W
Part Number: 49507-21A00
$210.90 MSRP: $296.31
You Save: $85.41 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint & Shaft Kit-Front Axle Wheel,LH; CV Joint, Outer Joint
- Position: Driver Side
- Replaces: 49507-21001, 49507-21000
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts

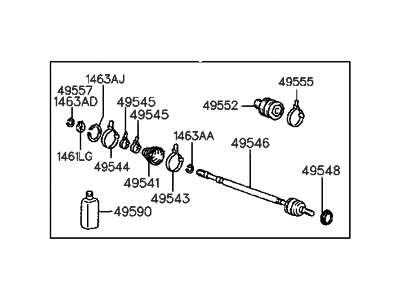

Hyundai Excel Joint & Shaft Kit-Front Axle W
Part Number: 49508-21000
$211.27 MSRP: $296.31
You Save: $85.04 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint & Shaft Kit-Front Axle Wheel Side,RH
- Position: Passenger Side
- Replaced by: 49508-21A00
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Joint & Shaft Kit-Front Axle W
Part Number: 49508-21A00
$210.90 MSRP: $296.31
You Save: $85.41 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint & Shaft Kit-Front Axle Wheel Side,RH; CV Joint, Outer Joint
- Position: Passenger Side
- Replaces: 49508-21000
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Joint & Shaft Kit-Front Axle W
Part Number: 49507-24A00
$263.80 MSRP: $370.63
You Save: $106.83 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint & Shaft Kit-Front Axle Wheel,LH
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Joint & Shaft Kit-Front Axle W
Part Number: 49508-24A01
$134.19 MSRP: $203.50
You Save: $69.31 (35%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint & Shaft Kit-Front Axle Wheel Side,RH
- Position: Passenger Side
- Replaced by: 49508-24A01-RM
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Joint & Shaft Kit-Front Axle W
Part Number: 49508-24A00
$263.80 MSRP: $370.63
You Save: $106.83 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint & Shaft Kit-Front Axle Wheel Side,RH
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door

Hyundai Excel Axle Shaft

If you are looking for affordable high-quality OEM Hyundai Excel Axle Shaft, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Excel Axle Shaft at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Excel Axle Shaft Parts Questions & Experts Answers

Joint & Shaft Kit-Front Axle W
49507-24A00
Q: How toremove the wheel cover and Axle Shaft on Hyundai Excel?
A: To remove the wheel cover and loosen the axle shaft hub nut, raise the front of the vehicle and support it securely on jackstands. Remove the front wheel. Remove the axle shaft hub nut by bracing a screwdriver across two of the wheel studs. On 1994 and earlier models, remove the two balljoint-to-lower arm bolts/nuts and separate the lower arm from the balljoint. On 1995 and later models, detach the lower arm balljoint from the strut knuckle assembly, detach the steering tie-rod, and detach the stabilizer bar. Press the axle shaft from the hub with a puller, then pull out on the steering knuckle and remove the outer end of the axle shaft from the hub splines. Before removing the axle shaft from the transaxle, drain the transaxle fluid. Carefully insert a prybar between the transaxle case at the case rib and the Constant Velocity (CV) axle shaft joint and pry while supporting the CV joints. Do not insert the prybar too deep to prevent damage to the differential oil seal. Pry the old circlip from the inner end of the axle shaft and install a new one. Lubricate the differential seal with multi-purpose grease, raise the axle shaft into position while supporting the CV joints and insert the splined end of the inner CV joint into the differential side gear. Apply a light coat of multi-purpose grease to the outer CV joint splines, pull out on the strut steering knuckle assembly and install the stub axle in the hub. Connect the balljoint to the lower arm. Install the hub nut using a new large washer underneath it. Grasp the inner CV joint housing and pull out to make sure that the axle shaft has seated securely in the transaxle. Install the wheel and lower the vehicle. Tighten the hub nut to the specified torque and install the wheel cover.
