How to disconnect and remove the clutch slave cylinder on Hyundai Excel?

Disconnect the negative cable from the battery. Raise the vehicle and support it securely on jackstands. Loosen the bleed plug on the clutch slave cylinder (it's bolted to the transaxle) and place a drain pan under the bleed plug. Apply the clutch pedal several times to force the hydraulic brake fluid out of the system. Continue to apply the clutch pedal until all fluid is expelled. Tighten the bleed plug securely. Caution: Don't allow hydraulic brake fluid to come into contact with paint, as it will damage the finish. Disconnect the hydraulic line at the clutch slave cylinder. Have a small can and rags handy, as some residual fluid will be spilled as the line is removed. On early models, remove the snap-ring and remove the clevis pin. Disconnect the pushrod from the transaxle lever or clutch fork. Unbolt the clutch slave cylinder from the clutch housing and remove the clutch slave cylinder. Installation is the reverse of the removal procedure. Tighten the clutch slave cylinder mounting bolts securely. Bleed the system.

Genuine Hyundai Excel Clutch Slave Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Clutch Slave Cylinders found

View related parts

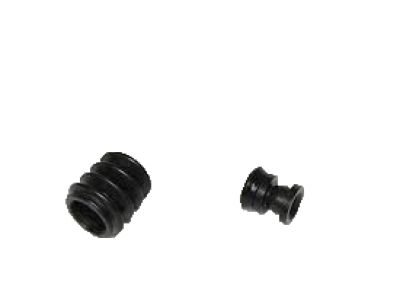

Hyundai Excel Cylinder Kit-Clutch Release
Part Number: 41710-24A10
$25.86 MSRP: $36.02
You Save: $10.16 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder Repair Kit
- Replaces: 41710-24A00
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts

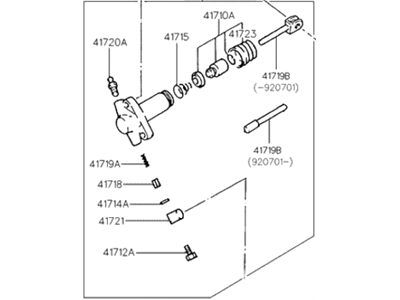

Hyundai Excel Cylinder Assembly-Clutch Release
Part Number: 41710-24050
$101.28 MSRP: $142.29
You Save: $41.01 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 41710-24060
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Cylinder Assembly-Clutch Release
Part Number: 41710-24060
$101.28 MSRP: $142.29
You Save: $41.01 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder
- Replaces: 41710-24050
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Cylinder Kit-Clutch Release
Part Number: 41710-24A00
$25.86 MSRP: $36.02
You Save: $10.16 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 41710-24A10
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door

Hyundai Excel Clutch Slave Cylinder

The Hyundai Excel Clutch Slave Cylinder enables vehicle drivers to smoothly disengage the engine and gearbox. It alters pedal force into hydraulic pressure that lifts the clutch away from the flywheel. When brake fluid is expelled from the master cylinder, it goes into the body of the Excel Clutch Slave Cylinder. This forces an internal piston outward that moves a rod that pushes on the release lever so gears can swap without grinding. When fluid levels drop, seals wear or leaks occur, the Clutch Slave Cylinder loses its pressure. Subsequently, pedal feel becomes spongy and changing gears becomes a gamble. Hence, prompt Clutch Slave Cylinder replacement is necessary. Hyundai relied on a single hydraulic layout across the production run of the Excel, so all models share a compact cast-iron or aluminum Clutch Slave Cylinder fed by the clutch master cylinder, whose only minor mounting alterations do not affect function or performance. By ensuring that the brake lines are free from air pockets and using factory Hyundai brake fluid, proper pressures are maintained to allow all Hyundai Excel drivers a light, precise shift.

If you are looking for affordable high-quality OEM Hyundai Excel Clutch Slave Cylinder, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Excel Clutch Slave Cylinder at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Excel Clutch Slave Cylinder Parts Questions & Experts Answers

Cylinder Assembly-Clutch Release
41710-24050
Q: How to disconnect and remove the clutch slave cylinder on Hyundai Excel?
A:
Disconnect the negative cable from the battery. Raise the vehicle and support it securely on jackstands. Loosen the bleed plug on the clutch slave cylinder (it's bolted to the transaxle) and place a drain pan under the bleed plug. Apply the clutch pedal several times to force the hydraulic brake fluid out of the system. Continue to apply the clutch pedal until all fluid is expelled. Tighten the bleed plug securely. Caution: Don't allow hydraulic brake fluid to come into contact with paint, as it will damage the finish. Disconnect the hydraulic line at the clutch slave cylinder. Have a small can and rags handy, as some residual fluid will be spilled as the line is removed. On early models, remove the snap-ring and remove the clevis pin. Disconnect the pushrod from the transaxle lever or clutch fork. Unbolt the clutch slave cylinder from the clutch housing and remove the clutch slave cylinder. Installation is the reverse of the removal procedure. Tighten the clutch slave cylinder mounting bolts securely. Bleed the system.
