How to remove and install the turn signal switch or windshield wiper/washer switch on Hyundai Excel?

Park the vehicle with the front wheels in the straight-ahead position and disconnect the cable from the negative terminal of the battery. For 2005 and earlier models, remove the steering wheel, then take off the lower dash panel and steering column cover. On 1994 and earlier models, remove the switch retaining screws, trace the wiring harness down the steering column to the connector, cut the wiring tiestrap if equipped, disconnect the connector, and slide the switch up off the column. For 1995 through 2005 models, disconnect the electrical connector, remove the three multi-function switch mounting screws, and slide the switch assembly off the steering column. Installation is the reverse of removal. For 2006 and later models, it is not necessary to remove the steering wheel, as the turn signal switch or the windshield wiper/washer switch can be removed separately. Remove the steering column covers, then use a screwdriver to disengage the switch locking tab and pull out the switch. When installing the switch, ensure that the locking lug snaps into place. Installation is the reverse of removal.

Genuine Hyundai Excel Turn Signal Switch

Turn Signal Indicator Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Turn Signal Switches found

View related parts

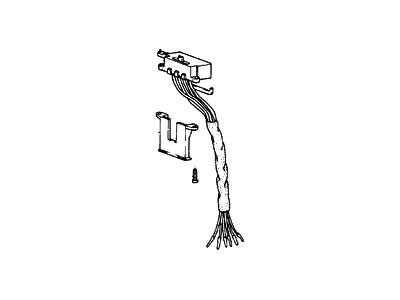

Hyundai Excel Switch Assembly-Lighting
Part Number: 93415-24000
$54.97 MSRP: $76.56
You Save: $21.59 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Headlamp Switch
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts

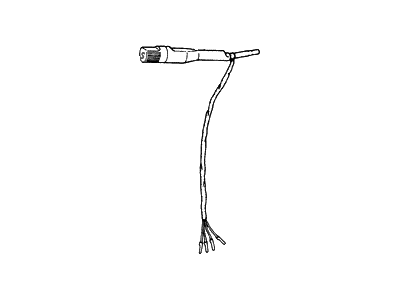

Hyundai Excel Switch Assembly-Turn Signal & Hazard
Part Number: 93430-21050
$37.29 MSRP: $51.94
You Save: $14.65 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Turn Signal Switch
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts

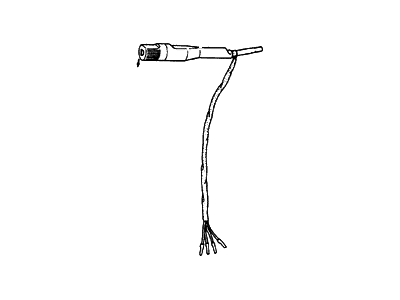

Hyundai Excel Switch Assembly-Turn Signal & Hazard
Part Number: 93430-24000
$47.93 MSRP: $66.76
You Save: $18.83 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Turn Signal Switch
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Switch Assembly-Turn Signal & Hazard
Part Number: 93430-24300
$47.93 MSRP: $66.76
You Save: $18.83 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Turn Signal Switch
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Switch Assembly-Lighting
Part Number: 93415-21050
$51.73 MSRP: $72.05
You Save: $20.32 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Switch Assembly-Lighting
Part Number: 93415-24300
Product Specifications
- Other Name: Headlamp Switch
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door

Hyundai Excel Turn Signal Switch

The Turn Signal Switch of Hyundai Excel serves as a convenient means for the driver to communicate to the surroundings which way the vehicle will be turning. This Excel Turn Signal Switch can be fixed on the steering column. It uses a lever action. It also has internal contacts that close an electrical circuit to send current to the corner lamps when the stalk clicks. The Turn Signal Switch is simple to operate, allowing the driver to alert other drivers quickly. Lifting up the Turn Signal Switch triggers the flasher relay, while the blinker bulbs flash in timely accordance with safety regulations. At the same time, when the driver returns the wheel to center, an in-built cam in the Turn Signal Switch consecutively cancels the signal. Over the years, many Hyundai vehicles, including every generation of the Excel, have a similar stalk layout as it consistently adds on extra controls. These control stalks included headlights, wipers, and even cruise features and did not clutter up the dash, so a driver of an early or a later Excel experiences almost identical ergonomics. Despite some minor styling changes, the core mechanical switchgear and electrical principles remain essentially the same. Thus, a single durable Turn Signal Switch type caters for nearly all production years and preserves the decent feel Hyundai owners appreciate.

If you are looking for affordable high-quality OEM Hyundai Excel Turn Signal Switch, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Excel Turn Signal Switch at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Excel Turn Signal Switch Parts Questions & Experts Answers

Switch Assembly-Lighting
93415-24000
Q: How to remove and install the turn signal switch or windshield wiper/washer switch on Hyundai Excel?
A:
Park the vehicle with the front wheels in the straight-ahead position and disconnect the cable from the negative terminal of the battery. For 2005 and earlier models, remove the steering wheel, then take off the lower dash panel and steering column cover. On 1994 and earlier models, remove the switch retaining screws, trace the wiring harness down the steering column to the connector, cut the wiring tiestrap if equipped, disconnect the connector, and slide the switch up off the column. For 1995 through 2005 models, disconnect the electrical connector, remove the three multi-function switch mounting screws, and slide the switch assembly off the steering column. Installation is the reverse of removal. For 2006 and later models, it is not necessary to remove the steering wheel, as the turn signal switch or the windshield wiper/washer switch can be removed separately. Remove the steering column covers, then use a screwdriver to disengage the switch locking tab and pull out the switch. When installing the switch, ensure that the locking lug snaps into place. Installation is the reverse of removal.
