Where is the air filter and Cabin Air Filter located and How to remove it on Hyundai Santa Fe?

The air filter is located inside a housing on the side of the engine compartment. To remove the air filter, release the clamps retaining the two halves of the air filter housing and disconnect the wiring from the Mass Air Flow/Intake Air Temperature (MAF/IAT) sensor in order to create enough clearance to raise the lid. Lift the cover up and remove the air filter element. Inspect the outer surface of the filter element. If it is dirty, replace it. If it is only moderately dusty, it can be reused by blowing it clean from the back to the front surface with compressed air. Always wear eye protection when using compressed air! Because it is a pleated paper type filter, it cannot be washed or oiled. If it cannot be cleaned satisfactorily with compressed air, discard and replace it. Never drive the vehicle with the air cleaner removed. Excessive engine wear could result, and backfiring could even cause a fire under the hood. Installation is the reverse of removal. Make sure the hinge tabs on the housing cover engage properly with the lower part of the housing. There is a Cabin Air Filter in the blower housing that cleans the air before it enters the passenger's compartment. To remove the Cabin Air Filter, open the glove box and release the assist cord on the right side. Lower the glove box door by pushing inward on both sides of the box. Pull back the trim panel. Turn the filter door knob counterclockwise to release it. Lift the cover off and remove the upper Cabin Air Filter element. Lift out the lower element. Installation is the reverse of removal. Align the grooves with the lugs on the edges of the filters.

Genuine Hyundai Santa Fe Air Filter

Air Cleaner

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Air Filters found

View related parts

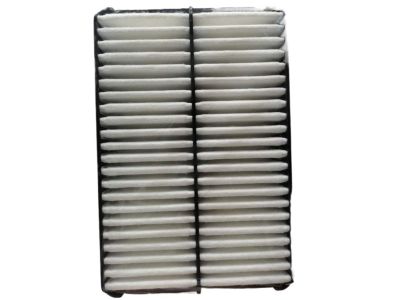

Hyundai Santa Fe Air Cleaner Filter
Part Number: 28113-A9100
$24.94 MSRP: $34.75
You Save: $9.81 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Filter-Air Cleaner; Air Filter
- Replaces: 28113-A9100-AS
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2019-2020 Hyundai Santa Fe | DOHC - GDI, DOHC - TCI/GDI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe Air Cleaner Filter
Part Number: 28113-2P100
$23.71 MSRP: $30.65
You Save: $6.94 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Filter-Air Cleaner; Air Filter, Filter
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2009-2012 Hyundai Santa Fe | DOHC - MPI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe Air Cleaner Filter
Part Number: 28113-2W100
$23.26 MSRP: $30.06
You Save: $6.80 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Filter-Air Cleaner; Air Filter
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2013-2018 Hyundai Santa Fe | DOHC - GDI | Wagon - Long 5Door 6P, Wagon - Long 5Door 7P
View related parts
Hyundai Santa Fe Air Cleaner Filter
Part Number: 28113-2B000
$22.36 MSRP: $28.91
You Save: $6.55 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Filter-Air Cleaner; Air Filter, Filter
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2006-2009 Hyundai Santa Fe | High Grade, Middle Grade | DOHC - MPI | 5 Door Wagon, 5 Door Wagon 7, Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Hyundai Santa Fe Air Cleaner Filter
Part Number: 28113-26000
$22.36 MSRP: $28.91
You Save: $6.55 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Filter-Air Cleaner; Air Filter, Filter
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Santa Fe | High Grade, Middle Grade | 5 Door Wagon
View related parts

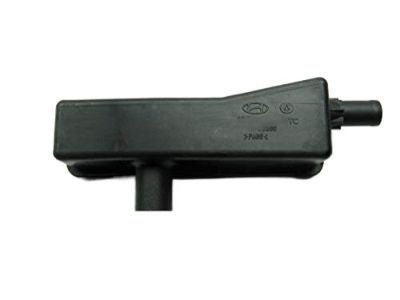

Hyundai Santa Fe Air Filter Assembly
Part Number: 31455-26300
$23.03 MSRP: $29.76
You Save: $6.73 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Filter Assembly-Air
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Santa Fe | High Grade, Middle Grade | 5 Door Wagon
View related parts

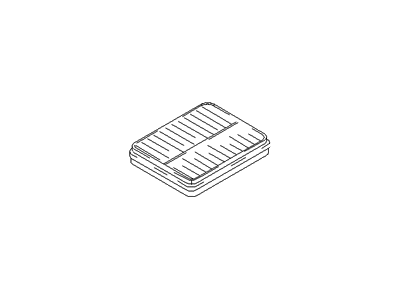

Hyundai Santa Fe Air Filter
Part Number: 28113-L1000
$24.65 MSRP: $31.85
You Save: $7.20 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Air Filter, Filter Air Cleaner, Filters, Cabin Air Filters; Filter-Air Cleaner, Filters
- Replaces: 28113-L1000-AS, 28113-L1100
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2021-2023 Hyundai Santa Fe | DOHC - GDI, DOHC - TCI/GDI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe Air Cleaner Filter
Part Number: 28113-26350
$22.36 MSRP: $28.91
You Save: $6.55 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Filter-Air Cleaner; Air Filter, Filter
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Santa Fe | High Grade, Middle Grade | 5 Door Wagon

Hyundai Santa Fe Air Filter

The purpose of the Hyundai Santa Fe Air Filter is to protect the engine by filtering out incoming air that enters the engine. This allows only clean air to reach the cylinders for a proper burn. It takes around 10,000 gallons of air to burn each gallon of fuel. The filter catches dust, sand, leaves, and five-micron particles that can cause power loss and reduce economy. Earlier Santa Fe models utilized a round paper Air Filter situated on top of the throttle body. The later fuel-injected version of the Hyundai Santa Fe adapted to a flat panel Air Filter inside a sealed air box. The designs employ dense paper pleats to channel all air through tiny openings. The panel seals against the air-box frame for tightly defined bays while the circular clamps secure under a simple lid. Changing the Air Filter regularly, no matter the style, will keep the Hyundai intake path clear, avoid restricted airflow, and save important engine parts. The Santa Fe engine receives cleaned air only as drivers undo clips or a wing nut, remove debris, and seat the new Air Filter. Checking Air Filters regularly is a minor exercise that can ensure your Hyundai's reliability on the road for a long time.

If you are looking for affordable high-quality OEM Hyundai Santa Fe Air Filter, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Santa Fe Air Filter at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Santa Fe Air Filter Parts Questions & Experts Answers

Air Cleaner Filter
28113-26000
Q: Where is the air filter and Cabin Air Filter located and How to remove it on Hyundai Santa Fe?
A:
The air filter is located inside a housing on the side of the engine compartment. To remove the air filter, release the clamps retaining the two halves of the air filter housing and disconnect the wiring from the Mass Air Flow/Intake Air Temperature (MAF/IAT) sensor in order to create enough clearance to raise the lid. Lift the cover up and remove the air filter element. Inspect the outer surface of the filter element. If it is dirty, replace it. If it is only moderately dusty, it can be reused by blowing it clean from the back to the front surface with compressed air. Always wear eye protection when using compressed air! Because it is a pleated paper type filter, it cannot be washed or oiled. If it cannot be cleaned satisfactorily with compressed air, discard and replace it. Never drive the vehicle with the air cleaner removed. Excessive engine wear could result, and backfiring could even cause a fire under the hood. Installation is the reverse of removal. Make sure the hinge tabs on the housing cover engage properly with the lower part of the housing. There is a Cabin Air Filter in the blower housing that cleans the air before it enters the passenger's compartment. To remove the Cabin Air Filter, open the glove box and release the assist cord on the right side. Lower the glove box door by pushing inward on both sides of the box. Pull back the trim panel. Turn the filter door knob counterclockwise to release it. Lift the cover off and remove the upper Cabin Air Filter element. Lift out the lower element. Installation is the reverse of removal. Align the grooves with the lugs on the edges of the filters.
