How to remove and install a Power Steering Pump on Hyundai Santa Fe?

Due to the very limited space through which the steering pump can be reached in majority of models, anything in the way must be removed or disconnected in order to gain access to the steering pump in your particular model of vehicle. First dem attach the cable from the negative terminal of the battery. Attach a container and a large syringe or suction gun to the fluid and pump out as much as you can from the power steering fluid reservoir; underneath the car, put the drain pan to collect the fluids dripping from the hose after their removal. Jack up the vehicle and support it with jackstands, then remove the wheel and the fender splash shield. Next, remove the drivebelt. Disconnect the fluid suction hose in relation to the pump and pull the electrical connector of the power steering pressure switch. Relieve the hydraulic pressure and unscrew the pressure line that is connected to the pump; make sure not to lose the seals, and then unbolt the pump. For installation simply reverse the procedure of removal and tighten the mounting bolts to the manufacturers recommended torque, also adjust the tension of the drive belt to required level. And at last, fill up the fluid in the reservoir and then discharge out the fluid in the system.

Genuine Hyundai Santa Fe Power Steering Pump

Power Steering Pump Unit

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Power Steering Pumps found

View related parts

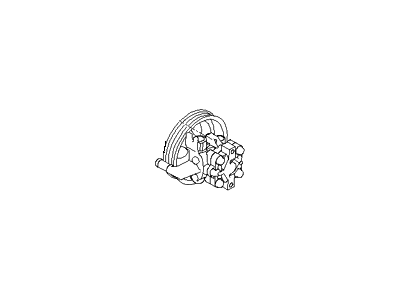

Hyundai Santa Fe Power Steering Oil Pump Assembly
Part Number: 57100-2P350
$332.82 MSRP: $467.60
You Save: $134.78 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Power Steering Oil; Power Steering Pump
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2009-2012 Hyundai Santa Fe | DOHC - MPI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe Power Steering Oil Pump Assembly
Part Number: 57100-0W500
$567.83 MSRP: $804.79
You Save: $236.96 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Power Steering Oil; Power Steering Pump
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2006-2009 Hyundai Santa Fe | High Grade | DOHC - MPI | 5 Door Wagon, 5 Door Wagon 7, Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Hyundai Santa Fe Power Steering Oil Pump Assembly
Part Number: 57100-26200
$391.92 MSRP: $555.47
You Save: $163.55 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Power Steering Oil; Power Steering Pump
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Santa Fe | High Grade, Middle Grade | 5 Door Wagon
View related parts
Hyundai Santa Fe Power Steering Oil Pump Assembly
Part Number: 57100-2B300
$338.25 MSRP: $475.23
You Save: $136.98 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Power Steering Oil; Power Steering Pump
- Replaces: 57100-0W300
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2006-2009 Hyundai Santa Fe | Middle Grade | DOHC - MPI | 5 Door Wagon, 5 Door Wagon 7, Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Hyundai Santa Fe Power Steering Oil Pump Assembly
Part Number: 57100-26100
$391.92 MSRP: $555.47
You Save: $163.55 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Power Steering Oil; Power Steering Pump
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Santa Fe | High Grade, Middle Grade | 5 Door Wagon
View related parts
Hyundai Santa Fe Power Steering Oil Pump Assembly
Part Number: 57100-0W300
$338.25 MSRP: $475.23
You Save: $136.98 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Power Steering Oil
- Replaced by: 57100-2B300
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2006-2009 Hyundai Santa Fe | Middle Grade | DOHC - MPI | 5 Door Wagon, 5 Door Wagon 7, Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Hyundai Santa Fe Power Steering Oil Pump Assembly
Part Number: 57100-1U000
$395.66 MSRP: $560.77
You Save: $165.11 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Power Steering Oil; Power Steering Pump
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2009-2012 Hyundai Santa Fe | DOHC - MPI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe Power Steering Oil Pump Assembly
Part Number: 57100-26500
$391.92 MSRP: $555.47
You Save: $163.55 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Power Steering Oil; Power Steering Pump
- Replaces: 57110-26500
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Santa Fe | High Grade | 5 Door Wagon

Hyundai Santa Fe Power Steering Pump

The Hyundai Santa Fe Power Steering Pump lessens steering effort. This is achieved as the engine's power converts into hydraulic pressure, assisting in the turning of the wheels. The Power Steering Pump is mounted to the engine and is spun by a V-belt or serpentine belt. It draws fluid from an attached or remote reservoir and pressurizes it. The pressurized fluid is pushed through a high-pressure hose to the steering gear. A control valve in the steering gear allows the pressurized fluid to be directed to either side of a cylinder piston to give the driver boost in the turning direction. The Hyundai Santa Fe initially applied a hydraulic Power Steering Pump with no electronic influence. Later variants employ electronic variable-assist units. They utilize a hydraulic pump but an additional speed-sensitive control valve that is controlled by the onboard computer to deliver assist for parking and dial it back at highway speeds for good road feel. The second type, an electronic-control Power Steering Pump, fits to Hyundai mounting points on the Santa Fe engine range. A low-pressure return hose, irrespective of style, channels the fluid back for recirculation. Warning signs such as leaks from the Hyundai Power Steering Pump unit, whining, belt squeal, or heavier steering at low speeds indicate that the power steering system in your Santa Fe requires further inspection. It may require pump replacement to restore handling.

If you are looking for affordable high-quality OEM Hyundai Santa Fe Power Steering Pump, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Santa Fe Power Steering Pump at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Santa Fe Power Steering Pump Parts Questions & Experts Answers

Power Steering Oil Pump Assembly
57100-2P350
Q: How to remove and install a Power Steering Pump on Hyundai Santa Fe?
A:
Due to the very limited space through which the steering pump can be reached in majority of models, anything in the way must be removed or disconnected in order to gain access to the steering pump in your particular model of vehicle. First dem attach the cable from the negative terminal of the battery. Attach a container and a large syringe or suction gun to the fluid and pump out as much as you can from the power steering fluid reservoir; underneath the car, put the drain pan to collect the fluids dripping from the hose after their removal. Jack up the vehicle and support it with jackstands, then remove the wheel and the fender splash shield. Next, remove the drivebelt. Disconnect the fluid suction hose in relation to the pump and pull the electrical connector of the power steering pressure switch. Relieve the hydraulic pressure and unscrew the pressure line that is connected to the pump; make sure not to lose the seals, and then unbolt the pump. For installation simply reverse the procedure of removal and tighten the mounting bolts to the manufacturers recommended torque, also adjust the tension of the drive belt to required level. And at last, fill up the fluid in the reservoir and then discharge out the fluid in the system.
