Car Cooler System fit your 1985 Hyundai Excel
Currently shopping for
1985 Hyundai Excel
Change VehicleCategories Close X
Currently selected
Electrical
- Air Conditioner Wiring
- Antenna
- Blower Unit
- Body Side Lamp
- Car Cooler System
- Car Stereo
- Cigarette Lighter
- Common Wiring
- Compartment Lamp
- Compressor Assy
- Crash Pad Mounting Switch
- Crash Pad Wiring
- Delayed Action Relay
- Digital Clock
- Door Opening Switch
- Evaporator Unit
- Front Windshield Wiper
- Fuse Box
- Head Lamp
- Heater Group
- Heater Unit
- High Mounted Stop Lamp
- Horn
- Illumination Control Rheostat
- Instrument Cluster
- Intermittent Wiper Relay
- License Plate Lamp
- Main Wiring
- Miscellaneous Wiring
- Multifunction Switch
- Power Relay
- Rear Extension Wiring
- Rear Mounted Lamp
- Rear Wiper
- Rear Wiring
- Room Lamp
- Speaker
- Tail Gate Wiring
- Windshield Washer
- Windshield Wiper Motor
Other Categories
Body
Chassis
Engine
Transmission
Trim
How to use OE catalog

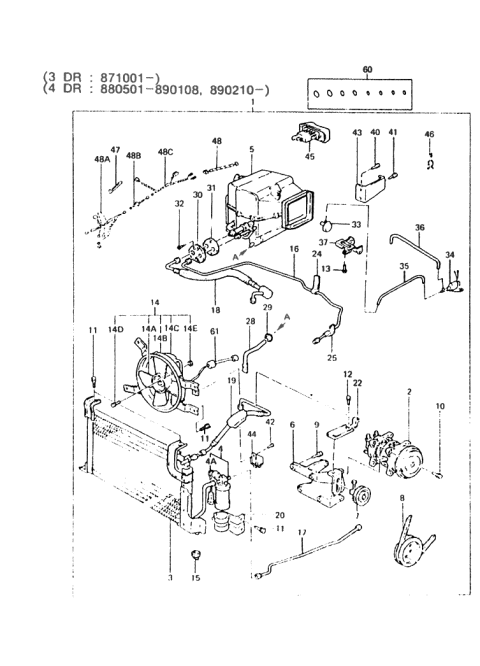

2 diagrams found. Select a diagram to view its particular parts.
- 1.CAR COOLER SYSTEM (01/02)
- 2.CAR COOLER SYSTEM (02/02)
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- Actuator-Fic Equipment33$98.74 $70.281
- 3397720-21250
Actuator-Fic Equipment- Production Date: from 05/1988
- Part Name Code: 97720
- Replaced By: 97720-24000
$73.34 $52.651 - 33$73.34 $52.651
- 3397720-32001
Actuator-Fic Equipment- Production Date: till 05/1988
- Part Name Code: 97720
- Replaced By: 97720-24000
$73.34 $52.651
- Belt"V"8
$15.55 $12.031 - 8
$15.55 $12.031
- Bezel Assy-A/Vent, LH197600-21100
Bezel Assy-A/Vent, LH- Location: Driver Side
- Production Date: till 02/1986
- Part Name Code: 97600
- 197600-21101
Bezel Assy-A/Vent, LH- Location: Driver Side
- Production Date: 02/1986-08/1986
- Part Name Code: 97600
- 197600-21102
Bezel Assy-A/Vent, LH- Location: Driver Side
- Production Date: 08/1986-09/1986
- Part Name Code: 97600
- 197600-21103
Bezel Assy-A/Vent, LH- Location: Driver Side
- Production Date: 09/1986
- Part Name Code: 97600
- 197600-21110
Bezel Assy-A/Vent, LH- Location: Driver Side
- Production Date: 09/1986-03/1987
- Part Name Code: 97600
- 197600-21111
Bezel Assy-A/Vent, LH- Location: Driver Side
- Production Date: 03/1987-07/1987
- Part Name Code: 97600
- 197600-21113
Bezel Assy-A/Vent, LH- Location: Driver Side
- Production Date: 07/1987-04/1988
- Part Name Code: 97600
- 197600-21114
Bezel Assy-A/Vent, LH- Location: Driver Side
- Production Date: from 04/1988
- Part Name Code: 97600
- 197600-21700
Bezel Assy-A/Vent, LH- Location: Driver Side
- Production Date: till 04/1988
- Part Name Code: 97600
- 197600-21701
Bezel Assy-A/Vent, LH- Location: Driver Side
- Production Date: from 04/1988
- Part Name Code: 97600
- Blower Assy14
$418.45 $297.841 - 14
$418.45 $297.841
- Blower Assy3
$525.67 $340.981 - 3
$525.67 $340.981

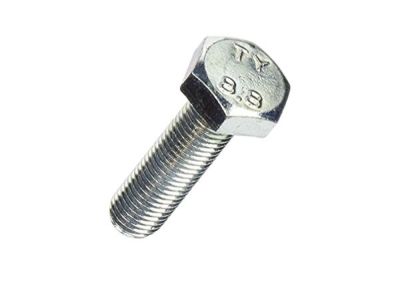

- Bolt12
$2.10 $1.621 - 1211223-05141
Bolt- Part Name Code: 11223
- Bolt40
$0.60 $0.461 - 40$0.60 $0.461
- Bolt11
11230-08121
Bolt- Production Date: from 04/1988
- Require Quantity: 4
- Package Quantity: 1
- Part Name Code: 11230
- 1111230-08121
Bolt- Production Date: till 04/1988
- Require Quantity: 8
- Package Quantity: 1
- Part Name Code: 11230
- 19A$1.27 $0.991
- 9
$1.89 $1.461
- 41
$0.60 $0.461
- 38$2.06 $1.601
- Bolt10
$2.60 $2.011 - 10$2.60 $2.011
- 13
$0.94 $0.721
- 3211492-05163
Bolt- Require Quantity: 2
- Part Name Code: 11492
- 11$1.55 $1.201
- 10$2.48 $1.921
- Bracket-Actuator MTG3797721-21050
Bracket-Actuator MTG- Production Date: till 06/1986
- Part Name Code: 97721
- Replaced By: 97721-21400
$18.34 $14.191 - 3797721-21051
Bracket-Actuator MTG- Production Date: 06/1986-01/1988
- Part Name Code: 97721
- Replaced By: 97721-21400
$18.34 $14.191 - 37$18.34 $14.191
- 37$18.34 $14.191
- 37$18.34 $14.191
- Bracket-Compressor MTG6$260.84 $185.651
- 6$134.89 $96.011
- Bracket-Evaporator MTG43$9.68 $7.491
- 43$9.68 $7.491
- 43$9.68 $7.491
- Bracket-Receiver Drier MTG2097851-21000
Bracket-Receiver Drier MTG- Production Date: till 08/1986
- Part Name Code: 97851
- Replaced By: 97851-21001
$29.03 $22.461 - 20$29.03 $22.461
- 20
- 20
- 20$33.26 $23.881
- 44
$33.89 $24.331
- Clip24$5.26 $4.071
- 24$5.26 $4.071
- Clip-A/C Cooler Line25$3.82 $2.961
- 25$3.82 $2.961
- Clip-Discharge Hose MTG2297798-21000
Clip-Discharge Hose MTG- Production Date: till 02/1986
- Part Name Code: 97798
- Replaced By: 97798-21250
$6.27 $4.851 - 2297798-21001
Clip-Discharge Hose MTG- Production Date: from 02/1986
- Part Name Code: 97798
- Replaced By: 97798-21250
$6.27 $4.851 - 22$6.27 $4.851
- 23$15.05 $11.641
- 46$1.42 $1.101
- Compressor Assy2
$761.82 $537.511 - 2
97701-31002
Compressor Assy- Production Date: till 10/1986
- Part Name Code: 97701
- Replaced By: 97701-31004
$1210.58 $846.631 - 297701-31003
Compressor Assy- Production Date: 10/1986-05/1987
- Part Name Code: 97701
- Replaced By: 97701-31004
$1210.58 $846.631 - 2$1210.58 $846.631
- 2$714.27 $503.961
- Condenser Assy-Cooler3$624.98 $405.401
- 3$624.98 $405.401
- 397606-21501
Condenser Assy-Cooler- Production Date: till 08/1986
- Part Name Code: 97606
- Replaced By: 97606-21502
$800.60 $519.311 - 3$800.60 $519.311
- 397606-21503
Condenser Assy-Cooler- Production Date: 09/1986-04/1988
- Part Name Code: 97606
- Replaced By: 97605-21251
$525.67 $340.981 - 397606-21600
Condenser Assy-Cooler- Production Date: from 04/1988
- Part Name Code: 97606
- Replaced By: 97606-21300
$624.98 $405.401
- Cover-Cassette61$17.34 $13.421
- 61
- Drier-Receiver4
$203.08 $144.541 - 4
$203.08 $144.541 - 4$203.08 $144.541
- Evaporator Unit5
97601-21000
Evaporator Unit- Production Date: till 09/1986
- Part Name Code: 97601
- Replaced By: 97601-21000-D
$764.16 $539.161 - 5$764.16 $539.161
- 5$757.65 $534.561
- 5
$687.76 $485.251
- 14$418.45 $297.841
- Fan-Cooling14A
$37.66 $27.041 - 14A
$37.66 $27.041
- 35$3.55 $2.751
- Gasket36$8.50 $6.581
- 36$8.50 $6.581
- Hose-Cooler Line Suction18
97763-21050
Hose-Cooler Line Suction- Production Date: till 03/1987
- Part Name Code: 97763
- Replaced By: 97763-21052
$213.71 $152.111 - 1897763-21051
Hose-Cooler Line Suction- Production Date: 03/1987-04/1988
- Part Name Code: 97763
- Replaced By: 97763-21052
$213.71 $152.111 - 18$213.71 $152.111
- 18$277.08 $197.211
- 18
$168.26 $119.761
- Hose-Discharge19
$200.26 $142.541 - 1997762-21001
Hose-Discharge- Production Date: 02/1986-09/1986
- Part Name Code: 97762
- Replaced By: 97762-21040
$200.26 $142.541 - 1997762-21010
Hose-Discharge- Production Date: 09/1986-04/1988
- Part Name Code: 97762
- Replaced By: 97762-21040
$200.26 $142.541 - 1997762-21030
Hose-Discharge- Production Date: 04/1988-11/1988
- Part Name Code: 97762
- Replaced By: 97762-21040
$200.26 $142.541 - 19$200.26 $142.541
- 1997762-21060
Hose-Discharge- Production Date: 07/1987-04/1988
- Part Name Code: 97762
- Replaced By: 97762-21061
$304.90 $217.021 - 19$304.90 $217.021
- 19
$102.13 $72.691
- Hose-Drain28$15.50 $11.991
- 28$15.50 $11.991
- 28$15.50 $11.991
- Isolator1597790-21000
Isolator- Require Quantity: 2
- Package Quantity: 1
- Part Name Code: 97790
- Replaced By: 97790-21200
$3.79 $2.931 - 15$3.79 $2.931
- Motor-Condensor Cooling Fan14C
$421.53 $300.031 - 14C
$367.31 $261.431
- 14C$367.31 $261.431
- 14E
$0.94 $0.721
- 36$3.55 $2.751
- 35$3.55 $2.751
- 14A$36.65 $26.311
- Panel Assy-A/C Control60$76.18 $54.691
- 60$64.19 $46.091
- Plate-A/C Cooler Line30$8.23 $6.361
- 30$8.23 $6.361
- 30$2.76 $2.131
- Protector31$5.97 $4.621
- 31$4.45 $3.441
- 1311400-05121
Pulley Assy-Crankshaft- Require Quantity: 2
- Part Name Code: 11400
- Pulley-Damper49
$138.21 $98.371 - 49$138.21 $98.371
- 4923124-21052
Pulley-Damper- Production Date: 07/1986-08/1986
- Part Name Code: 23124
- Replaced By: 23124-21054
$157.81 $112.321
- Pulley-Tension7$63.52 $45.601
- 7$111.94 $79.671
- Relay Box-ABS44$79.90 $57.371
- 44$79.90 $57.371
- 44$43.29 $31.081
- 26$1.03 $0.801
- 14D$0.82 $0.641
- 42
$0.77 $0.601
- 27$0.73 $0.561
- Seal Assy-Mechanical29$6.84 $5.291
- 29$6.84 $5.291
- 27$0.94 $0.721
- Shroud14B
$102.79 $73.161 - 14B
$64.19 $46.091
- 14B$182.06 $129.591
- Stator21$88.03 $62.661
- 21$88.03 $62.661
- Switch Assy-Air Conditioning45
$30.84 $23.861 - 45$32.15 $24.871
- Switch Assy-Pressure4A
$182.18 $129.671 - 4A
$185.45 $132.001
- Tube-Liquid16
$42.32 $30.391 - 16
$42.32 $30.391
- Tube-Liquid17
$46.79 $33.591 - 17$46.79 $33.591
- 17
$46.79 $33.591
- Valve-Solenoid34$74.24 $53.301
- 34$74.24 $53.301
- 34$74.24 $53.301
- 34$74.24 $53.301
- 34$74.24 $53.301
- 26$2.48 $1.921
- 4791512-21150
Wiring Assy-Chassis No.2- Require Quantity: 3
- Package Quantity: 1
- Part Name Code: 91512
- Replaced By: 17993-16000
$1.16 $0.901
- Wiring Assy-Heater, LH4891671-21350
Wiring Assy-Heater, LH- Location: Driver Side
- Production Date: till 08/1986
- Part Name Code: 91671
- Replaced By: 91671-21351
$138.98 $98.921 - 4891671-21351
Wiring Assy-Heater, LH- Location: Driver Side
- Production Date: 08/1986-09/1986
- Part Name Code: 91671
$138.98 $98.921
- Wiring Assy-Heater, LH48A91671-21400
Wiring Assy-Heater, LH- Location: Driver Side
- Production Date: till 09/1988
- Part Name Code: 91671
- Replaced By: 91671-21401
$126.71 $90.191 - 48A91671-21401
Wiring Assy-Heater, LH- Location: Driver Side
- Production Date: from 09/1988
- Part Name Code: 91671
$126.71 $90.191
- 48B$75.53 $54.231
- 48C$57.24 $41.101
- 48$8.68 $6.711
Genuine Hyundai Parts, the Right Choice
HyundaiPartsDeal.com offers the wholesale prices for genuine 1985 Hyundai Excel parts. Parts like Car Cooler System are shipped directly from authorized Hyundai dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options.
