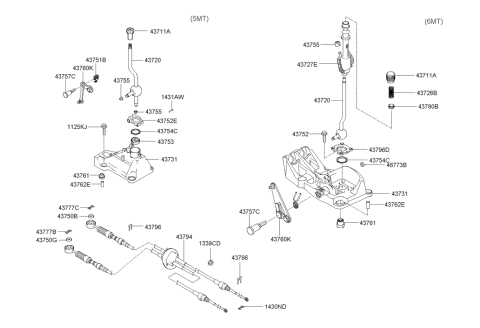

Hyundai 43794-2D100 Manual Transmission Lever Cable Assembly

To dismantle the shift lever initially, you will have to take out the center console. Next, free the shift and select cable retainers, and both cables from the shift lever. Next unscrew the retaining bolts or nuts and pull off the shift lever assembly; likewise to put it in reverse. For the cables following steps were observed; Disconnect the shift and select cable from the shift lever assembly. On 1.4L models, unscrew the air filter housing. Next, you will have to remove the battery as well as the battery tray and then the PCM and bracket. On the 5-speed and 6-speed models you need to unbolt the cable end from the transaxle by first removing the retaining clips and finally the cotter pins. On any 7 speed models available, pop off the cable end mounting nut; then, extricate the cable from the bracket. Last of all, the cable retainer bolts are loose from the firewall and the cable assembly separated from the car and or operated by reversing the procedure mentioned above.

Check the operation of the transaxle in each shift lever position by trying to start the engine in each gear; the starter should operate only in the Park and Neutral positions.
