How to remove the distributor on Hyundai Excel?

To eliminate the distributor, you should first disconnect the battery cable at the negative terminal. After that, place the number one cylinder on top of its compression stroke at dead center. Remove coil lead from distributor cap and advance unit vacuum hose(s) in carbureted models. Before unplugging them from distributor cap find your number one cylinder spark plug wire terminal and label all spark plug wires. Release retaining clips and remove the distributor cap ensuring it is positioned well off the distributor body. Disconnect distributor wiring harness and mark distributor flange and cylinder head for alignment purposes. Remove the hold down nut and washer then pull outwards to get rid of excesses if necessary take off rotor and vacuum diaphragm as well. In order to fit back in a new position install vacuum diaphragm and igniter under point of re-assembling the distributor at which point check that number one piston is at top dead center if needed so. Firmly press down rotor onto distributor shaft after greasing replacement O-ring with engine oil or grease before fitting it in place again lubricate new o-ring slightly to one side of mark made on distributor before removal, align marks on cylinder head with those already existing on other parts this should be done gently enough not cause any damage even when marking may not be accurate make sure camshaft drive gear mates properly by inserting distributer while making sure you do so properly align mark on distro flange with center mounting stud loosely attach washer nut tighten slide assembly into locked position using clips finally put back spark plug cables that are removed connect battery cable to negative terminal lastly ensure hub is lightly tight against upper surface of block also ignition timing can be checked adjusted where need be before retightening nut hold-down.

Genuine Hyundai Excel Distributor

Ignition Distributor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Distributors found

View related parts

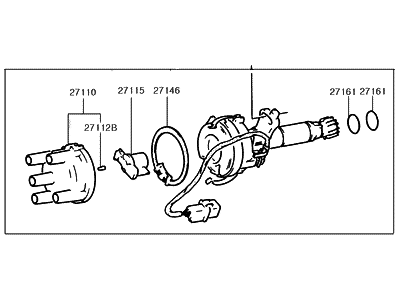

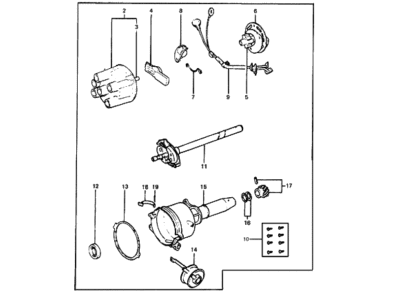

Hyundai Excel Distributor Assembly
Part Number: 27100-21440
$694.26 MSRP: $992.71
You Save: $298.45 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Distributor
- Replaces: 27100-21380
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Distributor Assembly
Part Number: 27100-24511
$668.42 MSRP: $947.35
You Save: $278.93 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 27101-24510
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Distributor Assembly
Part Number: 27101-24510
$668.42 MSRP: $947.35
You Save: $278.93 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Distributor
- Replaces: 27100-24511
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Distributor Assembly
Part Number: 27100-21370
$694.26 MSRP: $992.71
You Save: $298.45 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 27100-21430
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Distributor Assembly
Part Number: 27100-21380
$694.26 MSRP: $992.71
You Save: $298.45 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 27100-21440
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Distributor Assembly
Part Number: 27100-21430
$694.26 MSRP: $992.71
You Save: $298.45 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Distributor
- Replaces: 27100-21370
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Distributor Assembly
Part Number: 27100-21350
$739.09 MSRP: $1056.81
You Save: $317.72 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 27100-21410
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Distributor Assembly
Part Number: 27100-21360
$739.09 MSRP: $1056.81
You Save: $317.72 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 27100-21420
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Distributor Assembly
Part Number: 27100-21410
$739.09 MSRP: $1056.81
You Save: $317.72 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaces: 27100-21350
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Distributor Assembly
Part Number: 27100-21420
$739.09 MSRP: $1056.81
You Save: $317.72 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Distributor
- Replaces: 27100-21360
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel

Hyundai Excel Distributor

The Hyundai Excel Distributor is a device that distributes high voltage from a single ignition coil to the spark plugs in the correct sequence to enable the compact engine to start smoothly and on time. Within its cast housing, a shaft that is driven by a camshaft spins a rotor that is located beneath a plastic cap, and as the rotor passes each tower, the Distributor directs current through plug wires to the cylinders. The early Excel models were equipped with a mechanical breaker-point Distributor consisting of centrifugal and vacuum advance weights that altered the timing as speed and load changed. However, as with any breaker-point ignition system, regular tune-ups were required for the points, rotor, and cap. Hyundai started using an electronic Distributor with a toothed reluctor and magnetic pickup mid-cycle. As a result, points were replaced with solid-state switching to give a stronger spark and steadier timing with less maintenance. In addition to that trigger alteration, the fundamental design of the gear-driven oil pump drive, rotor, and cap remained consistent. The inspection of the cap terminals, rotor tips, bushings, and advance parts of Hyundai ignition, whichever style the Excel is equipped with, ensures crisp sparking while preventing hard starting and power loss from affecting the agile Excel's performance to ensure consistent power delivery from the Hyundai engine while the Distributor continues to do its important job.

If you are looking for affordable high-quality OEM Hyundai Excel Distributor, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Excel Distributor at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Excel Distributor Parts Questions & Experts Answers

Distributor Assembly
27100-24511
Q: How to remove the distributor on Hyundai Excel?
A:
To eliminate the distributor, you should first disconnect the battery cable at the negative terminal. After that, place the number one cylinder on top of its compression stroke at dead center. Remove coil lead from distributor cap and advance unit vacuum hose(s) in carbureted models. Before unplugging them from distributor cap find your number one cylinder spark plug wire terminal and label all spark plug wires. Release retaining clips and remove the distributor cap ensuring it is positioned well off the distributor body. Disconnect distributor wiring harness and mark distributor flange and cylinder head for alignment purposes. Remove the hold down nut and washer then pull outwards to get rid of excesses if necessary take off rotor and vacuum diaphragm as well. In order to fit back in a new position install vacuum diaphragm and igniter under point of re-assembling the distributor at which point check that number one piston is at top dead center if needed so. Firmly press down rotor onto distributor shaft after greasing replacement O-ring with engine oil or grease before fitting it in place again lubricate new o-ring slightly to one side of mark made on distributor before removal, align marks on cylinder head with those already existing on other parts this should be done gently enough not cause any damage even when marking may not be accurate make sure camshaft drive gear mates properly by inserting distributer while making sure you do so properly align mark on distro flange with center mounting stud loosely attach washer nut tighten slide assembly into locked position using clips finally put back spark plug cables that are removed connect battery cable to negative terminal lastly ensure hub is lightly tight against upper surface of block also ignition timing can be checked adjusted where need be before retightening nut hold-down.
