How to replace the rear crankshaft seal on 2012 and later Hyundai Accent?

First, take out the transaxle; next, you have to take out the flywheel/driveplate. Remove the Crankshaft Seal from the rear of the engine with the aid of a seal puller or a screwdriver in such a manner that one does not gouge or paint the crankshaft or the seal slot. Raise the block and clean the seal bore with a shop towel and make sure that there is no dirt or oil in it. Apply a little grease on the OD of the seal then slide it over the end of the crankshaft, making sure the lip is pointing toward the engine. If possible, with the separation vessel oriented the opposite from the original seal position, use a seal installment tool to press the new seal back into this location with the understanding that a small oil drain pipe in the separator must be at the bottom. In case the proper installation tool cannot be applied, then the use of a large socket will suffice in order to drive the new seal in such a manner that it will be parallel to the edge of the engine block. Finally, bolt on the flywheel/drive plate and then the transaxle.

How to replace the front crankshaft seal on Hyundai Elantra?

To change the front crankshaft oil seal with the oil pump installed, follows the steps and take off the timing belt cover, timing belt, and the crankshaft sprocket. Observe the depth of the seal in the bore and then using screw driver or seal puller gently remove the seal from the oil pump housing without harming the crankshaft or scratching the housing. In the absence of a seal removal tool, two self-tapping screws are sufficient to thread into the front seal; this will help in pulling it out. Scrub the bore in the housing with a clean cloth and lubricate the outer/ridge part of the new seal in engine oil or multi-purpose grease with grease on the seal lip. Clamp the socket having slightly smaller outside diameter than the seal into place and hit the new seal gently to drive it in square and in the required depth as of the former seal. If a socket is not available a short piece of pipe of large diameter may be utilized. Once done fit the crankshaft sprocket, and make sure the slot of the timing belt fits properly over the spring before refitting the belt. All in all, start the engine and check the oil leakage dropping at the front seal. For the outer crankshaft oil seal RS, needed for 2011 and further year models, the crankshaft does not include a seal housing like models with an external housing Fast and Easy for the outboard crankshaft, the RS seal can be installed and removed without the housing. First, start with the removal of the transaxle, next, for the models having a manual transaxle, disassemble the pressure plate and clutch disc and lastly the flywheel or the driveplate. Using the seal removal tool, pry out the old seal up from the housing, put some clean engine oil on the lip of the new seal, using a large socket with a diameters slightly smaller as the outside diameter of the new seal, push the seal into the housing until it is fully in place. Check and reinstall the flywheel or driveplate Then for the Manual transaxle model reinstall the clutch disc as well as the pressure plate and again reinstall the transaxle main model.

Genuine Hyundai Crankshaft Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

84 Crankshaft Seals found

View related parts

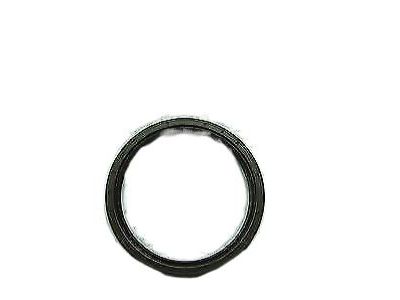

Hyundai Seal-Oil
Part Number: 21421-2G100
$20.78 MSRP: $26.85
You Save: $6.07 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaces: 21421-25000, 21421-25001, 21421-25002
Fits the following Hyundai Models:
- Elantra | 2021-2023 | DOHC - MPI
- Elantra N | 2022-2023 | DOHC - TCI/GDI
- Genesis G70 | 2019-2023 | DOHC - TCI/GDI
- Kona | 2022-2023 | DOHC - MPI
- Kona N | 2022-2023 | DOHC - TCI/GDI
- Santa Fe | 2019-2020 | DOHC - GDI, DOHC - TCI/GDI
- Santa Fe Sport | 2016-2018 | DOHC - GDI, DOHC - TCI/GDI
- Sonata | 2015-2019 | DOHC - GDI, DOHC - TCI/GDI
- Sonata Hybrid | 2020-2023 | DOHC - GDI
- Tucson | 2015-2021 | DOHC - GDI
View More
View related parts

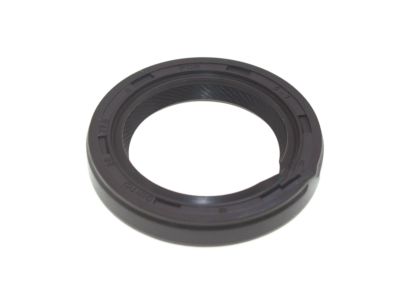

Hyundai Seal-Oil
Part Number: 21421-25002
$20.06 MSRP: $25.92
You Save: $5.86 (23%)
Ships in 1-3 Business Days
ADD TO CART
Fits the following Hyundai Models:
- Genesis Coupe | 2008-2016 | DOHC - TCI/MPI
- Santa Fe | 2009-2012 | DOHC - MPI
- Santa Fe Sport | 2013-2015 | DOHC - GDI, DOHC - TCI/GDI
- Sonata | 2005-2014 | High Grade, Middle Grade | DOHC - GDI, DOHC - MPI, DOHC - TCI/GDI
- Sonata Hybrid | 2011-2015 | DOHC - MPI
- Tucson | 2009-2014 | DOHC - GDI, DOHC - MPI
View More
View related parts

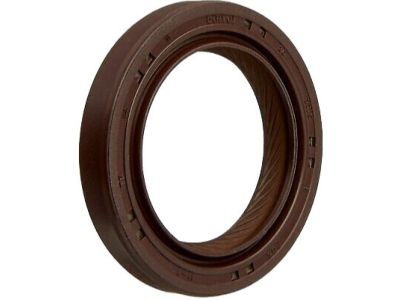

Hyundai Seal-Oil
Part Number: 21421-2E300
$12.62 MSRP: $16.31
You Save: $3.69 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaces: 21421-2E000
Fits the following Hyundai Models:
- Elantra | 2011-2023 | DOHC - GDI, DOHC - MPI
- Elantra GT | 2013-2020 | DOHC - GDI, DOHC - MPI
- Ioniq | 2017-2022 | DOHC - GDI
- Kona | 2018-2021 | DOHC - MPI
- Sonata Hybrid | 2016-2019 | DOHC - GDI
- Tucson | 2014-2021 | DOHC - GDI
- Veloster | 2019-2021 | DOHC - MPI
View More
View related parts

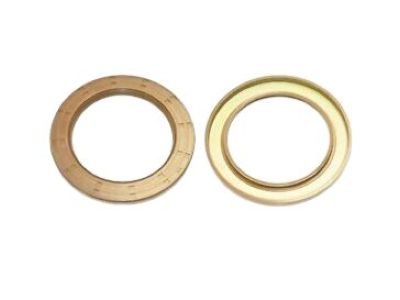

Hyundai Seal-Oil Rear
Part Number: 21321-42042
$40.61 MSRP: $56.56
You Save: $15.95 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal
- Position: Rear
- Replaces: 21443-33005, 21443-33004, 21443-32000
Fits the following Hyundai Models:
- Elantra | 1991-2010 | High Grade, Middle Grade | DOHC - MPI
- Elantra Touring | 2008-2012 | DOHC - MPI
- Sonata | 1988-1998 | High Grade, Middle Grade
- Tiburon | 1996-2008 | High Grade, Middle Grade | DOHC - MPI
- Tucson | 2004-2009 | High Grade, Middle Grade | DOHC - MPI
View More
View related parts

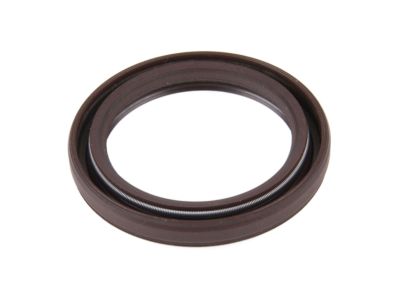

Hyundai Seal-Oil Rear
Part Number: 21443-2G000
$28.53 MSRP: $39.74
You Save: $11.21 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal, Rear Seal
- Position: Rear
- Replaces: 21443-25000
Fits the following Hyundai Models:
- Elantra N | 2022-2023 | DOHC - TCI/GDI
- Genesis Coupe | 2012-2016 | DOHC - TCI/MPI
- Genesis G70 | 2019-2023 | DOHC - TCI/GDI
- Kona N | 2022-2023 | DOHC - TCI/GDI
- Santa Fe | 2019-2020, 2000-2006 | High Grade, Middle Grade | DOHC - GDI, DOHC - TCI/GDI
- Santa Fe Sport | 2013-2018 | DOHC - GDI, DOHC - TCI/GDI
- Sonata | 2009-2019 | DOHC - GDI, DOHC - TCI/GDI
- Sonata Hybrid | 2011-2015 | DOHC - MPI
- Tucson | 2009-2021 | DOHC - GDI, DOHC - MPI
- Veloster N | 2019-2022 | DOHC - TCI/GDI
View More
View related parts

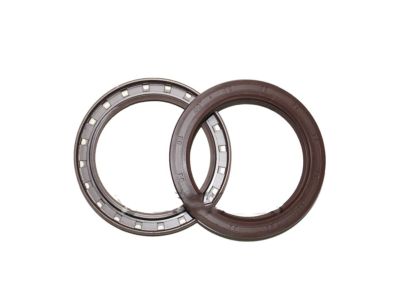

Hyundai Seal-Oil
Part Number: 21421-2B030
$13.45 MSRP: $17.39
You Save: $3.94 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaces: 21421-2B020
Fits the following Hyundai Models:
- Accent | 2011-2022 | DOHC - GDI
- Elantra | 2016-2020 | DOHC - TCI/GDI
- Elantra GT | 2018-2020 | DOHC - TCI/GDI
- Kona | 2018-2021 | DOHC - TCI/GDI
- Sonata | 2015-2019 | DOHC - TCI/GDI
- Tucson | 2015-2018 | DOHC - TCI/GDI
- Veloster | 2019-2021, 2011-2017 | DOHC - GDI, DOHC - TCI/GDI
View More
View related parts
Hyundai Seal-Oil
Part Number: 21421-2B020
$13.45 MSRP: $17.39
You Save: $3.94 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 21421-2B030
Fits the following Hyundai Models:
- Accent | 2011-2017 | DOHC - GDI
- Sonata | 2015-2017 | DOHC - TCI/GDI
- Tucson | 2015-2018 | DOHC - TCI/GDI
- Veloster | 2011-2017 | DOHC - GDI, DOHC - TCI/GDI
View More
View related parts
Hyundai Seal-Oil
Part Number: 21352-3C700
$27.53 MSRP: $38.34
You Save: $10.81 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaces: 21352-3C500, 21352-3C600
Fits the following Hyundai Models:
- Azera | 2005-2016 | High Grade | DOHC - GDI, DOHC - MPI
- Entourage | 2006-2008 | High Grade, Middle Grade | DOHC - MPI
- Genesis | 2008-2016 | DOHC - GDI, DOHC - MPI
- Genesis Coupe | 2012-2016 | DOHC - GDI
- Genesis G70 | 2019-2023 | DOHC - TCI/GDI
- Genesis G80 | 2017-2020 | DOHC - GDI, DOHC - TCI/GDI
- Genesis G90 | 2017-2022 | DOHC - TCI/GDI
- Palisade | 2020-2023 | DOHC - GDI
- Santa Fe | 2013-2018, 2006-2009 | High Grade, Middle Grade | DOHC - GDI, DOHC - MPI
- Santa Fe XL | 2019 | DOHC - GDI
View More
View related parts
Hyundai Seal-Oil Rear
Part Number: 21443-2B020
$55.68 MSRP: $77.55
You Save: $21.87 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal
- Position: Rear
- Replaces: 21443-2B000, 21443-2B010
Fits the following Hyundai Models:
- Accent | 2011-2022 | DOHC - GDI, DOHC - MPI
- Elantra | 2016-2023 | DOHC - TCI/GDI
- Elantra GT | 2018-2020 | DOHC - TCI/GDI
- Kona | 2018-2023 | DOHC - TCI/GDI
- Santa Fe Hybrid | 2021-2023 | DOHC - TCI/GDI
- Sonata | 2015-2023 | DOHC - TCI/GDI
- Tucson | 2022-2023, 2015-2018 | DOHC - TCI/GDI
- Veloster | 2019-2021, 2011-2017 | DOHC - GDI, DOHC - TCI/GDI
- Venue | 2020-2023 | DOHC - MPI
View More
View related parts
Hyundai Seal-Oil Rear
Part Number: 21443-2E110
$30.57 MSRP: $42.58
You Save: $12.01 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal
- Position: Rear
- Replaces: 21443-2E100, 21443-2E000
Fits the following Hyundai Models:
- Elantra | 2011-2020 | DOHC - GDI, DOHC - MPI
- Elantra GT | 2013-2020 | DOHC - GDI, DOHC - MPI
- Kona | 2018-2021 | DOHC - MPI
- Sonata Hybrid | 2016-2019 | DOHC - GDI
- Tucson | 2014-2021 | DOHC - GDI
- Veloster | 2019-2021 | DOHC - MPI
View More
View related parts
Hyundai Seal-Oil Rear
Part Number: 21443-25000
$28.53 MSRP: $39.74
You Save: $11.21 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Rear
Fits the following Hyundai Models:
- Genesis Coupe | 2008-2016 | DOHC - TCI/MPI
- Santa Fe | 2009-2012 | DOHC - MPI
- Santa Fe Sport | 2013-2015 | DOHC - GDI, DOHC - TCI/GDI
- Sonata | 2005-2014 | High Grade, Middle Grade | DOHC - GDI, DOHC - MPI, DOHC - TCI/GDI
- Sonata Hybrid | 2011-2015 | DOHC - MPI
- Tucson | 2009-2013 | DOHC - MPI
View More
View related parts
Hyundai Seal-Oil
Part Number: 21421-23020
$18.43 MSRP: $23.82
You Save: $5.39 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Front Cover Oil Seal, Front Crank Seal, Oil Pump
- Replaces: 21421-23000
Fits the following Hyundai Models:
- Elantra | 1995-2010 | High Grade, Middle Grade | DOHC - MPI
- Elantra Touring | 2008-2012 | DOHC - MPI
- Tiburon | 1996-2008 | High Grade, Middle Grade | DOHC - MPI
- Tucson | 2004-2009 | High Grade, Middle Grade | DOHC - MPI
View More
View related parts
Hyundai Seal-Oil Rear
Part Number: 21443-2A100
$81.08 MSRP: $113.92
You Save: $32.84 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Rear
- Replaced by: 21443-2A200
Fits the following Hyundai Models:
- Azera | 2006-2014 | DOHC - GDI, DOHC - MPI
- Genesis | 2008-2014 | DOHC - GDI, DOHC - MPI
- Genesis Coupe | 2008-2016 | DOHC - GDI, DOHC - MPI
- Santa Fe | 2007-2015 | DOHC - GDI, DOHC - MPI
- Sonata | 2007-2010 | DOHC - MPI
- Tiburon | 2006-2008 | DOHC - MPI
- Tucson | 2006-2009 | DOHC - MPI
- Veracruz | 2006-2012 | DOHC - MPI
View More
View related parts
Hyundai Seal-Oil
Part Number: 21352-3C600
$26.56 MSRP: $37.00
You Save: $10.44 (29%)
Ships in 1-3 Business Days
ADD TO CART
Fits the following Hyundai Models:
- Azera | 2006-2014 | DOHC - GDI, DOHC - MPI
- Entourage | 2006-2008 | DOHC - MPI
- Genesis | 2008-2014 | DOHC - GDI, DOHC - MPI
- Genesis Coupe | 2008-2016 | DOHC - GDI, DOHC - MPI
- Santa Fe | 2007-2015 | DOHC - GDI, DOHC - MPI
- Sonata | 2007-2010 | DOHC - MPI
- Veracruz | 2006-2012 | DOHC - MPI
View More
View related parts
Hyundai Seal-Oil Rear
Part Number: 21443-22000
$41.26 MSRP: $57.47
You Save: $16.21 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal
- Position: Rear
- Replaces: 21443-21010
Fits the following Hyundai Models:
- Accent | 1994-2011 | High Grade, Low Grade, Middle Grade | DOHC - MPI
- Excel | 1985-1994 | High Grade, Low Grade, Middle Grade
- Scoupe | 1990-1994 | High Grade, Middle Grade
View More
View related parts
Hyundai Seal-Oil Rear
Part Number: 21443-3C700
$49.60 MSRP: $69.08
You Save: $19.48 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal, Rear Seal
- Position: Rear
Fits the following Hyundai Models:
- Azera | 2011-2016 | DOHC - GDI
- Genesis | 2014-2016 | DOHC - GDI
- Genesis Coupe | 2012-2016 | DOHC - GDI, DOHC - TCI/MPI
- Genesis G70 | 2019-2023 | DOHC - TCI/GDI
- Genesis G80 | 2017-2020 | DOHC - GDI, DOHC - TCI/GDI
- Genesis G90 | 2017-2022 | DOHC - TCI/GDI
- Palisade | 2020-2023 | DOHC - GDI
- Santa Fe | 2013-2018 | DOHC - GDI
- Santa Fe XL | 2019 | DOHC - GDI
View More
View related parts
Hyundai Seal-Oil Rear
Part Number: 21443-2B000
$55.68 MSRP: $77.55
You Save: $21.87 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Rear
- Replaced by: 21443-2B020
Fits the following Hyundai Models:
- Accent | 2011-2014 | DOHC - GDI
- Veloster | 2011-2014 | DOHC - GDI, DOHC - TCI/GDI
View related parts
Hyundai Seal-Oil
Part Number: 21421-2E000
$12.62 MSRP: $16.31
You Save: $3.69 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 21421-2E300
Fits the following Hyundai Models:
- Elantra | 2011-2013 | DOHC - GDI, DOHC - MPI
- Elantra GT | 2013-2014 | DOHC - GDI, DOHC - MPI
View related parts
Hyundai Seal-Oil Rear
Part Number: 21443-2B010
$55.68 MSRP: $77.55
You Save: $21.87 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Rear
- Replaced by: 21443-2B020
Fits the following Hyundai Models:
- Accent | 2011-2014 | DOHC - GDI
- Sonata | 2015-2017 | DOHC - TCI/GDI
- Tucson | 2015-2018 | DOHC - TCI/GDI
- Veloster | 2011-2017 | DOHC - GDI, DOHC - TCI/GDI
View More
View related parts
Hyundai Case Assembly-Oil Seal
Part Number: 21130-3C151
$63.43 MSRP: $89.11
You Save: $25.68 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal Retainer
- Replaces: 21130-3C150
Fits the following Hyundai Models:
- Azera | 2006-2016 | DOHC - GDI, DOHC - MPI
- Genesis | 2008-2014 | DOHC - GDI, DOHC - MPI
- Palisade | 2020-2023 | DOHC - GDI
- Santa Fe | 2009-2018 | DOHC - GDI, DOHC - MPI
- Santa Fe XL | 2019 | DOHC - GDI
- Veracruz | 2006-2012 | DOHC - MPI
View More

| Page 1 of 5 |Next >

1-20 of 84 Results

Hyundai Crankshaft Seal Parts Questions & Experts Answers

Seal-Oil
21421-2B020
Q: How to replace the rear crankshaft seal on 2012 and later Hyundai Accent?
A:
First, take out the transaxle; next, you have to take out the flywheel/driveplate. Remove the Crankshaft Seal from the rear of the engine with the aid of a seal puller or a screwdriver in such a manner that one does not gouge or paint the crankshaft or the seal slot. Raise the block and clean the seal bore with a shop towel and make sure that there is no dirt or oil in it. Apply a little grease on the OD of the seal then slide it over the end of the crankshaft, making sure the lip is pointing toward the engine. If possible, with the separation vessel oriented the opposite from the original seal position, use a seal installment tool to press the new seal back into this location with the understanding that a small oil drain pipe in the separator must be at the bottom. In case the proper installation tool cannot be applied, then the use of a large socket will suffice in order to drive the new seal in such a manner that it will be parallel to the edge of the engine block. Finally, bolt on the flywheel/drive plate and then the transaxle.
Seal-Oil
21421-2E300
Q: How to replace the front crankshaft seal on Hyundai Elantra?
A:
To change the front crankshaft oil seal with the oil pump installed, follows the steps and take off the timing belt cover, timing belt, and the crankshaft sprocket. Observe the depth of the seal in the bore and then using screw driver or seal puller gently remove the seal from the oil pump housing without harming the crankshaft or scratching the housing. In the absence of a seal removal tool, two self-tapping screws are sufficient to thread into the front seal; this will help in pulling it out. Scrub the bore in the housing with a clean cloth and lubricate the outer/ridge part of the new seal in engine oil or multi-purpose grease with grease on the seal lip. Clamp the socket having slightly smaller outside diameter than the seal into place and hit the new seal gently to drive it in square and in the required depth as of the former seal. If a socket is not available a short piece of pipe of large diameter may be utilized. Once done fit the crankshaft sprocket, and make sure the slot of the timing belt fits properly over the spring before refitting the belt. All in all, start the engine and check the oil leakage dropping at the front seal. For the outer crankshaft oil seal RS, needed for 2011 and further year models, the crankshaft does not include a seal housing like models with an external housing Fast and Easy for the outboard crankshaft, the RS seal can be installed and removed without the housing. First, start with the removal of the transaxle, next, for the models having a manual transaxle, disassemble the pressure plate and clutch disc and lastly the flywheel or the driveplate. Using the seal removal tool, pry out the old seal up from the housing, put some clean engine oil on the lip of the new seal, using a large socket with a diameters slightly smaller as the outside diameter of the new seal, push the seal into the housing until it is fully in place. Check and reinstall the flywheel or driveplate Then for the Manual transaxle model reinstall the clutch disc as well as the pressure plate and again reinstall the transaxle main model.
